Product Details:

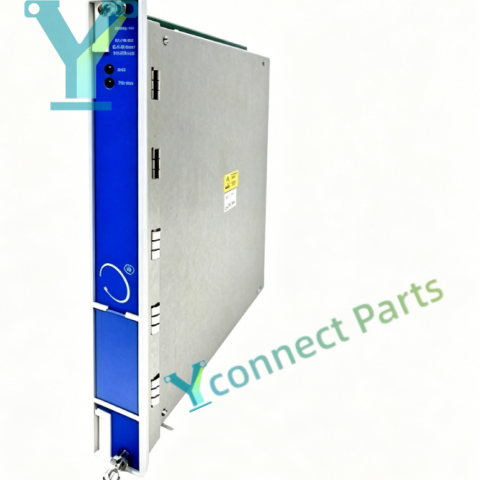

The BENTLY NEVADA 3500/92-01-01 communication gateway module belongs to Bently Nevada 3500 TSI machinery protection system. The suffix -01 represents Ethernet interface option, -01 for serial port selection. This full-height module occupies one slot in the 3500 rack. It collects vibration, temperature, speed, alarm status and rack health data from all internal modules, and converts rack internal data into standard communication protocols for external systems. It supports Modbus TCP/IP over Ethernet RJ45 port and Modbus RTU over RS232/RS422/RS485 serial port, connecting to DCS, PLC, SCADA and plant historian. Users can customize Modbus register mapping via 3500 rack configuration software to select required monitoring variables. It also supports Bently proprietary protocol for connecting with 3500 configuration software and System 1 condition monitoring software. Front panel LED indicators display module OK status and communication link status for on-site inspection. Built-in self-diagnosis function can detect module hardware fault and communication interruption faults. It supports hot swapping during normal rack operation, maintenance staff can replace the module without shutting down the whole TSI system. It complies with API 670 turbomachinery monitoring standard, widely applied in petrochemical, power generation and metallurgy industries, matched with steam turbines, gas turbines and centrifugal compressors, used for data exchange between 3500 machinery protection rack and plant control system.

Brand:Bently Nevada

Model:3500/92-01-01

Product Type:Full-height Communication Gateway Module

Installation:Any free slot of 3500 system rack

Communication:Modbus TCP/IP,Modbus RTU,Bently proprietary protocol

Feature:Ethernet+serial dual interface,custom Modbus register map,hot swappable,self-diagnosis,API 670 compliant

Application:Bently Nevada 3500 machinery protection rack data communication with DCS/PLC
