Product Details:

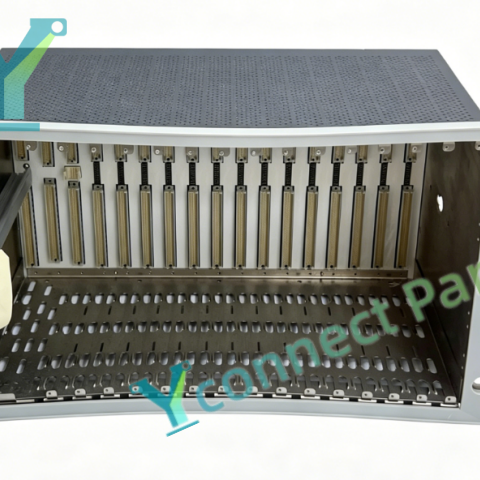

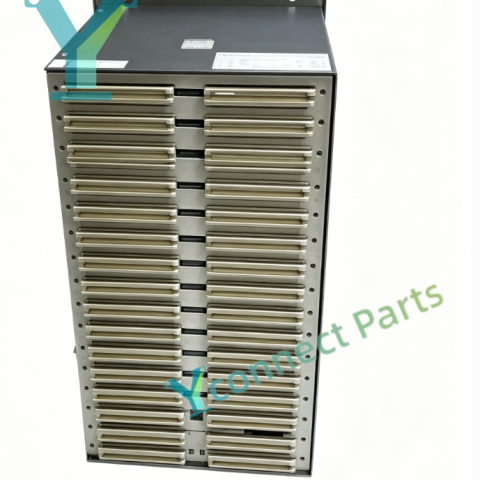

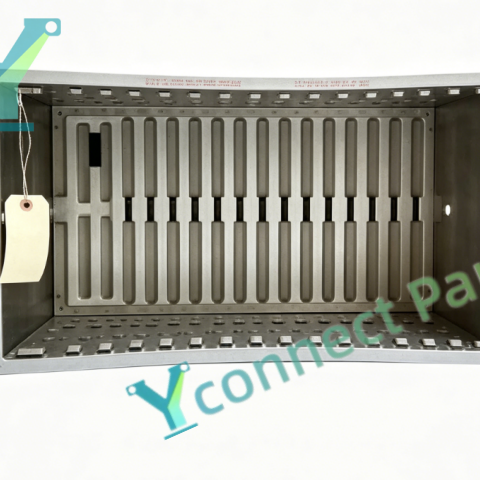

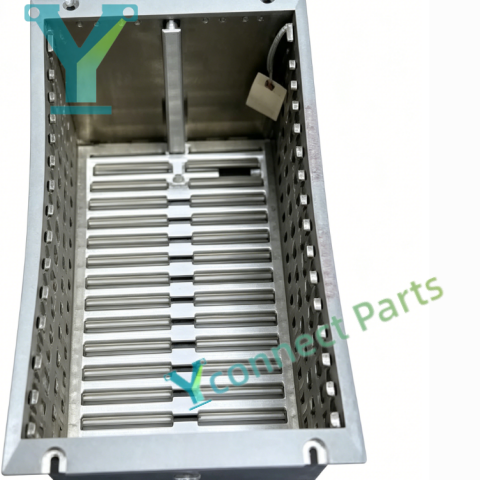

The BENTLY NEVADA 3500/05-01-02-00-00-01 system rack is the full-size 19-inch chassis for the Bently Nevada 3500 machinery protection TSI system. This 14 slot chassis adopts 19-inch EIA standard rack mounting structure, supporting installation of power supply modules, rack interface module, monitor modules, relay modules and communication modules. The backplane bus inside the rack realizes high-speed data communication between all plug-in modules and power distribution. The suffix code 01 represents 19-inch full-size rack with 14 module slots, 02 means 19-inch standard rack mount installation way. The left two dedicated half-height slots are reserved for redundant power modules, slot 1 is for rack interface or TDI module, and the remaining slots can be freely configured with various 3500 series monitor and I/O modules. The metal frame is rugged and anti-vibration, suitable for harsh industrial cabinet environments. It supports dual redundant power supply configuration, and all plug-in modules support hot swapping without shutting down the whole rack. The backplane provides stable signal transmission and power bus for vibration, temperature, position and speed monitoring modules. It can be equipped with optional intrinsically safe barrier assembly for hazardous area applications. It is widely used in petrochemical, power generation and metallurgy industries, matched with steam turbines, gas turbines and centrifugal compressors, as the core hardware carrier of 3500 TSI machinery protection monitoring system.

Brand: Bently Nevada

Model:3500/05-01-02-00-00-01

Product Type:19-inch Full-size System Rack Chassis

Slots:14 module slots, 2 dedicated half-height power slots

Mounting:19-inch EIA standard rack mount

Backplane:Internal parallel backplane bus for module communication and power distribution

Feature:14 slots full-size chassis,19 inch rack mounting,anti-vibration metal frame,support redundant power,hot swap module compatible

Application:Bently Nevada 3500 machinery protection system,installation carrier for all series monitor and power modules
