Product Details:

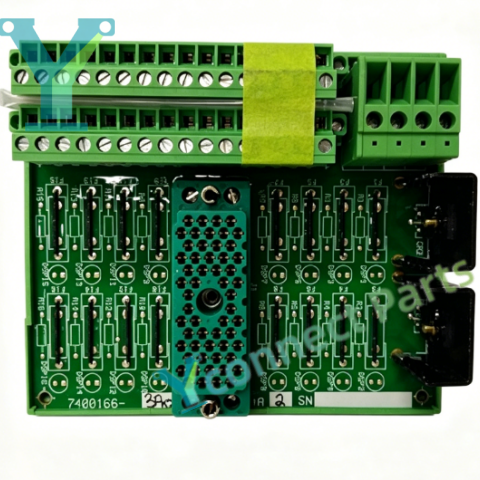

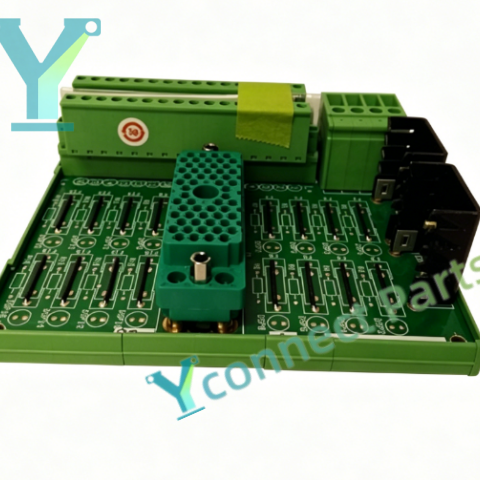

TRICONEX 9661-610 is a 16-point 115VAC commoned digital output termination panel built for Triconex TMR safety instrumented systems (SIS). This TMR safety field terminal panel acts as the wiring interface between Tricon digital output modules and field actuators, transferring safety control output signals from I/O modules to on-site field equipment. The termination panel is equipped with 16 load terminals and commoned power terminals, each output channel adopts 3A fast fuse protection with blown-fuse indicator, which can quickly cut off abnormal current and display fault status for fast troubleshooting. It is manufactured with industrial-grade PCB and high-quality screw terminals, featuring stable contact performance and good anti-vibration and anti-electromagnetic interference ability to adapt to harsh industrial cabinet environments. This panel is compatible with Tricon 3601E 115VAC digital output module, realizing reliable output signal transmission for safety control loops. It cooperates with Tricon main chassis, digital output modules and matched shielded cable assemblies. Widely applied in oil & gas, petrochemical, chemical and power industries, this TRICONEX 9661-610 termination panel undertakes field output wiring work for ESD emergency shutdown, fire and gas detection and burner management safety interlock systems.

Specifications:

Manufacturer: TRICONEX

Model: 9661-610

Product Type: Tricon 115VAC Commoned Digital Output Termination Panel

Signal Points: 16 points

Rated Voltage: 115 VAC

Channel Protection: 3A fast fuse per channel, blown fuse indicator

Compatible Module: 3601E

Feature: Commoned power terminals, screw terminal connection, DIN rail mounting

Operating Temperature: -20℃ ~ +70℃

Humidity: 5% to 95% non-condensing
