Product Details:

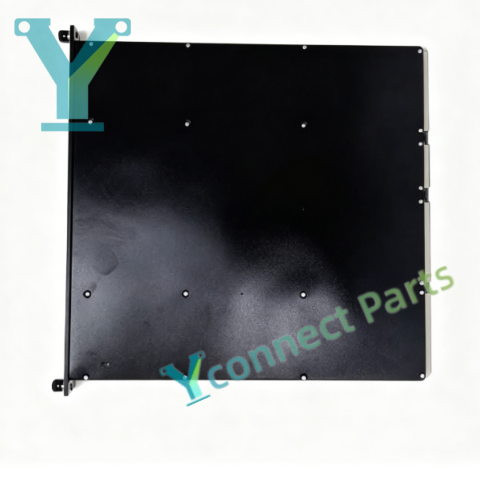

TRICONEX 3721 is a 32-channel differential analog input module adopting triple modular redundancy (TMR) architecture for Triconex Tricon safety instrumented systems (SIS). This TMR safety I/O module collects differential DC voltage signals from field transmitters and sensors, and converts analog signals into digital data for the Tricon main controller. The Tricon analog input module supports -5VDC to +5VDC and 0~5VDC DC-coupled differential input, with programmable 12-bit or 14-bit resolution and 10ms input update rate for high-precision signal acquisition. Each channel is equipped with isolation design to suppress ground loop noise and electrical interference from field equipment. Continuous built-in channel diagnostics can detect open circuit, short circuit and internal hardware faults, and transmit fault alarms to the engineering workstation in real time. The module supports hot swap operation, maintenance workers can replace the faulty module online without shutting down the safety system. Front panel LED indicators display module health status and channel signal state for fast on-site troubleshooting. It adopts 2-out-of-3 voting logic to eliminate single point of failure, fully meets SIL3 safety integrity level requirements. It can be installed in standard Tricon rack and matched with Tricon controller and other I/O modules. Widely applied in oil & gas, petrochemical, chemical and power industries, this TRICONEX 3721 analog input module is used for ESD emergency shutdown, fire and gas monitoring and other safety-critical control systems.

Specifications:

Manufacturer: TRICONEX (Schneider Electric)

Model: 3721

Product Type: Tricon 32-channel Differential Analog Input Module

System Compatibility: Tricon TMR Safety Instrumented System

Input Channels: 32 differential analog input channels

Input Range: -5VDC ~ +5VDC, 0~5VDC, DC-coupled

Resolution: Programmable 12-bit /14-bit

Update Rate: 10ms

Architecture: Triple Modular Redundancy(TMR), 2-out-of-3 voting

Safety Level: SIL3 certified

Isolation: Channel isolation, suppress ground loop interference

Diagnostics: Open circuit, short circuit and hardware fault detection

Feature: Hot swappable

Status Indicator: LED indicators for module health and channel status

Mounting: Tricon rack plug-in

Operating Temperature: 0℃ ~ +60℃

Humidity: 5% to 95% non-condensing

Certifications: IEC61508, SIL3, CE
