Product Details:

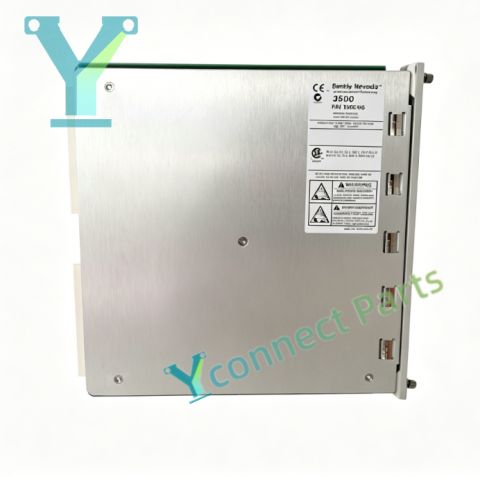

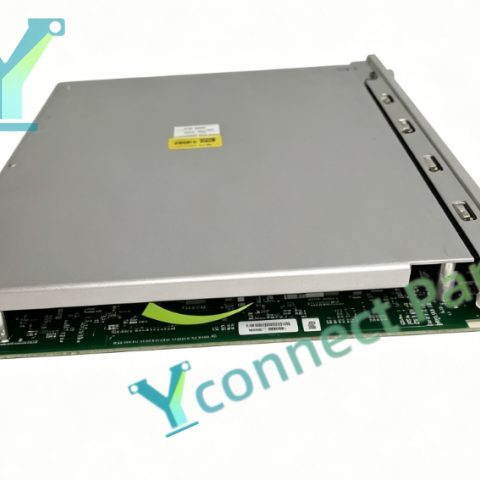

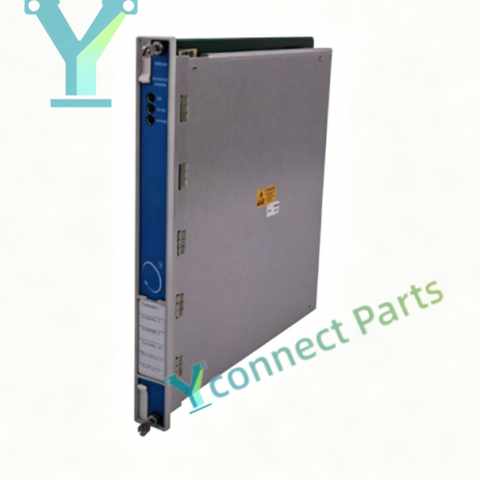

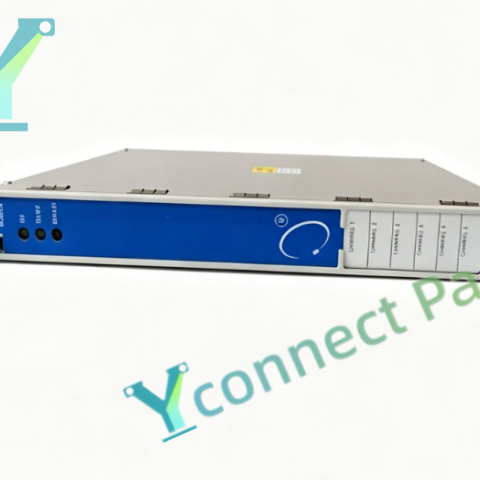

The BENTLY NEVADA 3500/60 six-channel temperature monitor module belongs to Bently Nevada 3500 TSI machinery protection system. It can be installed in any free slot of the 3500 rack. This module accepts input signals from RTD resistance temperature detectors and thermocouple TC sensors, supporting mixed input of different temperature sensors. Six channels are configured via 3500 rack configuration software, used for bearing metal temperature, stator temperature, casing temperature and temperature difference measurement. Each channel can be set with independent high and low Alert and Danger alarm thresholds. When temperature exceeds the preset value, the module sends alarm signals to rack relay modules to trigger machinery alarm or shutdown interlock. Unlike 3500/61, 3500/60 does not have 4-20mA recorder output. It cooperates with TDI module to upload temperature data to System 1 software for equipment condition analysis. Front panel LED indicators display module OK status, bypass state and each channel alarm state for on-site inspection. Built-in self-diagnosis function can detect sensor open circuit, short circuit and signal loss faults. It supports hot swapping during normal rack operation, maintenance staff can replace the module without shutting down the whole TSI system. It complies with API 670 turbomachinery monitoring standard, widely applied in petrochemical, power generation and metallurgy industries, matched with steam turbines, gas turbines and centrifugal compressors, used for rotating machinery bearing and stator temperature protection monitoring.

Brand:Bently Nevada

Model:3500/60

Product Type:Full-height 6-channel Temperature Monitor Module

Installation:Any free slot of 3500 system rack

Input:RTD / thermocouple TC signal

Feature:6 channels,support RTD and TC sensors,hot swappable,self-diagnosis,API 670 compliant,no 4-20mA recorder output

Application:Bently Nevada 3500 machinery protection rack bearing metal temperature monitoring
