Product Details:

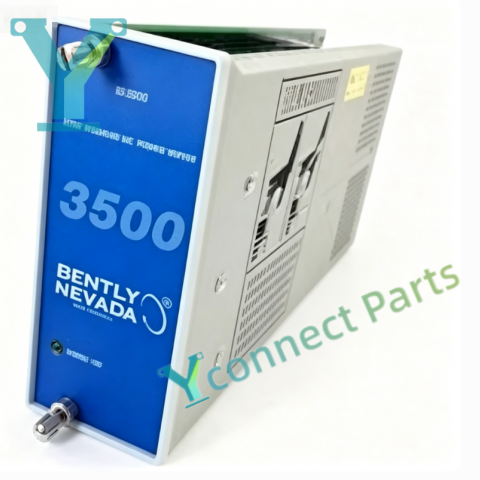

The BENTLY NEVADA 3500/15-02-02-00 half-height high voltage AC power supply module belongs to the Bently Nevada 3500 TSI machinery protection system. The suffix -02 stands for high voltage AC input (175~264Vac) for the top power slot, -02 means high voltage AC input for the bottom power slot, -00 means no special agency certification. This module must be installed in the dedicated power slots on the left side of the 3500 rack. It converts high voltage AC input into multiple stable DC power buses to supply power for all monitor, relay and communication plug-in cards inside the rack. The rack can install two 3500/15-02-02-00 modules to build dual redundant power architecture. If one power supply fails or is replaced, the other one continues to supply power to the whole rack system, and the TSI monitoring and safety trip logic will not be interrupted. It supports hot swapping during normal rack operation, maintenance personnel can replace the faulty power module without shutting down the rack. Front panel LED indicator displays module OK status and fault alarm for convenient on-site inspection. Built-in overvoltage, overcurrent and short circuit protection circuits can avoid damage to power module and other rack cards under abnormal electrical conditions. This model is a legacy high voltage AC power supply, and the updated replacement model is 3500/15-05-05-00. It is widely applied in petrochemical, power generation and metallurgy industries, matched with steam turbines, gas turbines and centrifugal compressors, providing reliable high-voltage AC power source for the 3500 online machinery monitoring and protection rack.

Brand: Bently Nevada

Model:3500/15-02-02-00

Product Type:Half-height High Voltage AC Power Supply Module

Installation:Left dedicated power slot of 3500 rack

Input:175~264Vac high voltage AC

Output:Multi-channel regulated DC bus for rack modules

Feature:Half-height design,dual high voltage AC input,dual redundant power support,hot swappable,overvoltage/overcurrent/short circuit protection,LED health indicator,legacy model

Application:Bently Nevada 3500 machinery protection rack power supply
