Product Details:

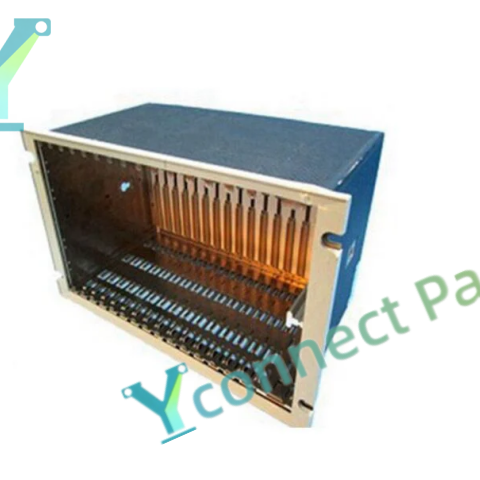

The BENTLY NEVADA 3500/05-02-02 is a 14-slot system rack chassis for Bently Nevada 3500 TSI machinery protection system. The suffix -02 represents rack mounting type, -02 stands for 14 available module slots, this rack is built with high-speed internal backplane bus, providing power distribution and data communication channel for all plug-in modules. Engineers can install power supply modules, monitor cards, relay modules and communication gateway modules in the slots according to project requirements, and can build TMR triple redundant safety architecture by three racks to meet high reliability turbomachinery protection demands. It supports dual redundant power supply configuration to avoid system shutdown caused by single power supply failure. The metal chassis adopts electromagnetic shielding and vibration resistant structure, which can resist electromagnetic interference in harsh industrial cabinet environments. Front panel LED indicators display rack power status and backplane operating condition for convenient daily on-site inspection. All plug-in modules support hot swapping when the rack runs normally, hardware replacement will not interrupt the safety protection logic of the whole TSI system. It complies with API 670 turbomachinery monitoring standard, widely applied in petrochemical, power generation and metallurgy industries, matched with steam turbines, gas turbines and centrifugal compressors, serving as the hardware carrier of rotating machinery online monitoring and safety protection system.

Brand: Bently Nevada

Model:3500/05-02-02

Product Type:14-slot System Rack Chassis

Installation:19-inch standard cabinet mount

Backplane:High-speed internal backplane bus

Feature:14 module slots,support dual redundant power supply,anti-interference metal housing,TMR architecture optional,hot swappable modules,API 670 compliant

Application:Bently Nevada 3500 machinery protection rack for turbine and compressor monitoring
