Product Details:

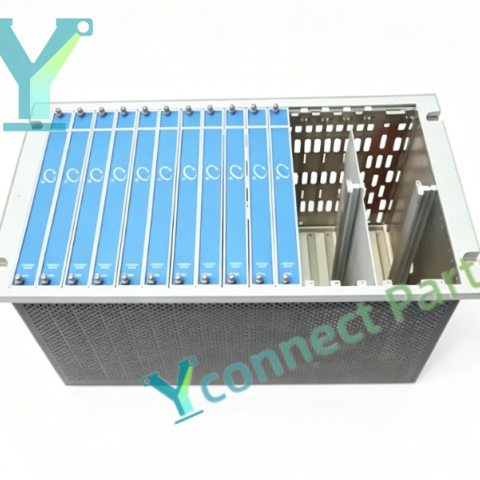

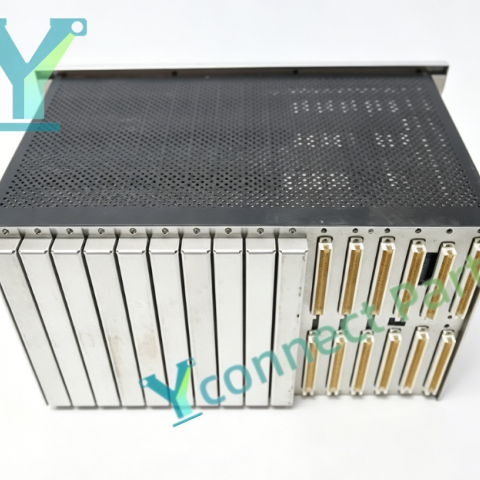

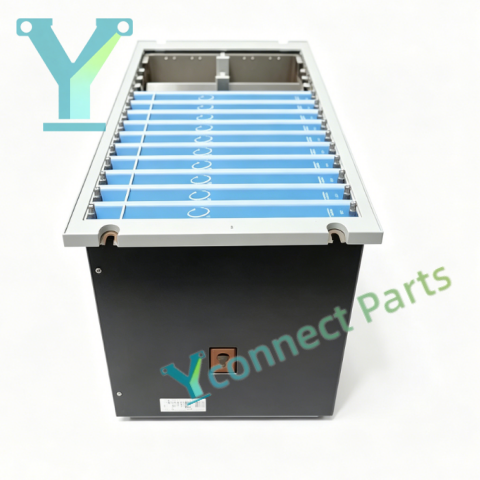

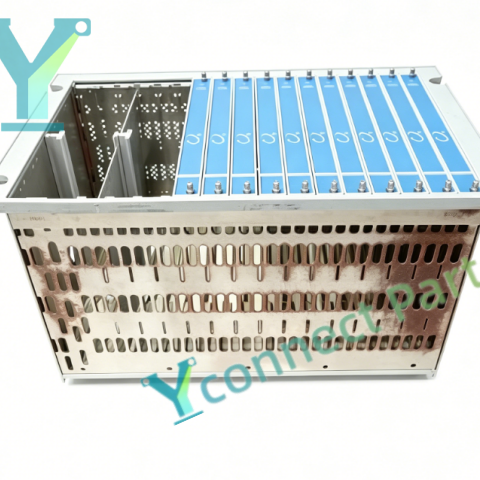

The BENTLY NEVADA 3500/05-01-02-00-00-00 is a 14-slot system rack chassis for Bently Nevada 3500 TSI machinery protection system. The suffix -01 represents rack mounting style, -02 stands for 14 available module slots, -00-00-00 means standard factory configuration without special hazardous area certifications, suitable for ordinary non-explosive industrial control rooms. This chassis adopts standard 19-inch cabinet installation structure, built-in high-speed backplane bus to provide power distribution and high-speed data transmission channel for all plug-in modules inside the rack. Engineers can arrange power supply modules, monitor cards, relay modules and communication gateway modules freely in the 14 slots according to project design, and three racks can be combined to build TMR triple modular redundant safety architecture for high-reliability turbomachinery protection. The rack supports dual redundant power supply installation to avoid system outage caused by single power supply failure. The metal chassis is designed with electromagnetic shielding and vibration resistance, which can suppress electromagnetic interference in industrial cabinet environment. Front panel LED indicators show rack power status and backplane running condition for daily on-site inspection. All plug-in modules support hot swapping when the rack is running normally, replacing one module will not break the safety protection logic of the whole TSI system. It complies with API 670 turbomachinery monitoring standard, widely applied in petrochemical, power generation and metallurgy industries, matched with steam turbines, gas turbines and centrifugal compressors, acting as the basic hardware platform of rotating machinery online monitoring and safety protection system.

Brand: Bently Nevada

Model:3500/05-01-02-00-00-00

Product Type:14-slot System Rack Chassis

Installation:19-inch standard cabinet mount

Backplane:High-speed internal backplane bus

Feature:14 module slots,dual redundant power supply support,anti-interference metal housing,TMR architecture optional,hot swappable modules,API 670 compliant

Application:Bently Nevada 3500 machinery protection rack for turbine and compressor monitoring
