Product Details:

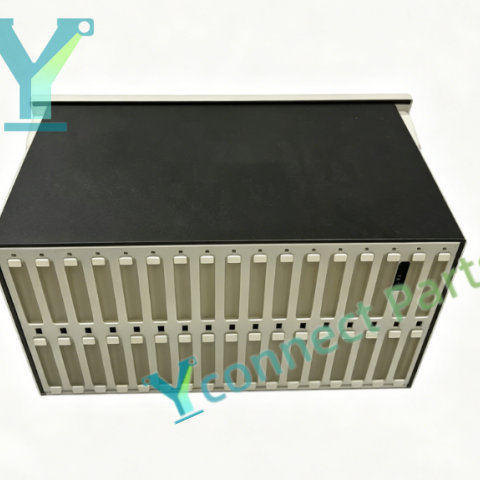

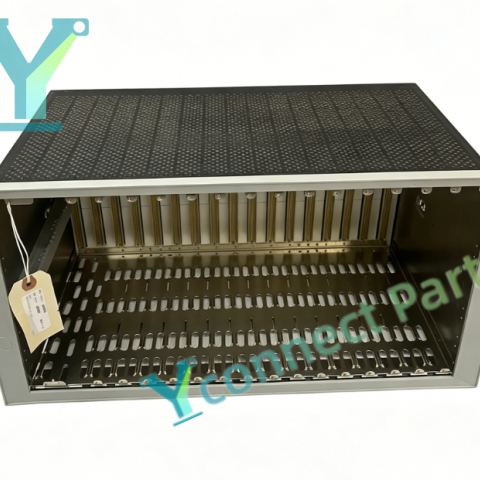

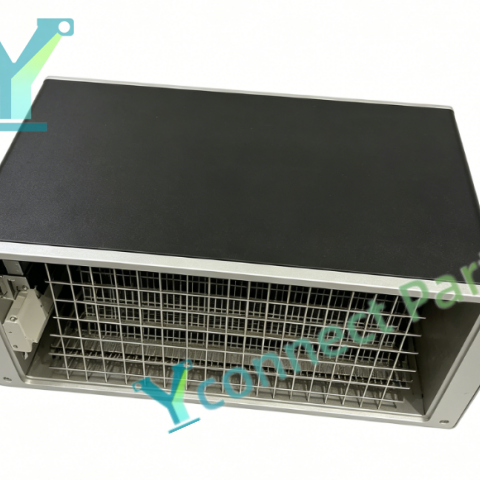

The BENTLY NEVADA 3500/05-01-01-00-00-00 is a 12-slot system rack chassis for Bently Nevada 3500 TSI machinery protection system. The suffix -01 represents rack mounting type, -01 means 12 module slots, -00-00-00 indicates no special certification and standard factory configuration, suitable for general non-explosive industrial environments. This is a 19-inch standard rack-mounted chassis, equipped with high-speed internal backplane bus, providing power distribution and data communication channel for all plug-in modules inside the rack. Users can install power supply cards, monitor modules, relay cards and communication gateway modules in the 12 slots according to project requirements, and can build TMR triple redundant safety architecture to meet high-reliability turbomachinery protection demands. The rack supports dual redundant power supply configuration to eliminate single point power failure risk. The metal chassis adopts electromagnetic shielding and vibration resistant structure, which can adapt to harsh industrial cabinet environments. Front panel LED indicators display rack power status and backplane operating condition for convenient on-site inspection. All plug-in modules support hot swapping during normal rack operation, and hardware replacement will not interrupt the safety protection logic of the whole TSI system. It complies with API 670 turbomachinery monitoring standard, widely applied in petrochemical, power generation and metallurgy industries, matched with steam turbines, gas turbines and centrifugal compressors, serving as the hardware carrier of rotating machinery online monitoring and safety protection system.

Brand: Bently Nevada

Model:3500/05-01-01-00-00-00

Product Type:12-slot System Rack Chassis

Installation:19-inch standard cabinet mount

Backplane:High-speed internal backplane bus

Feature:12 module slots,support dual redundant power supply,anti-interference metal housing,TMR architecture optional,hot swappable modules,API 670 compliant

Application:Bently Nevada 3500 machinery protection rack for turbine and compressor monitoring
