Product Details:

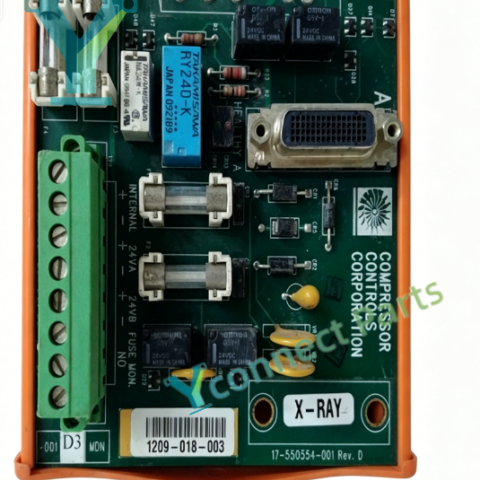

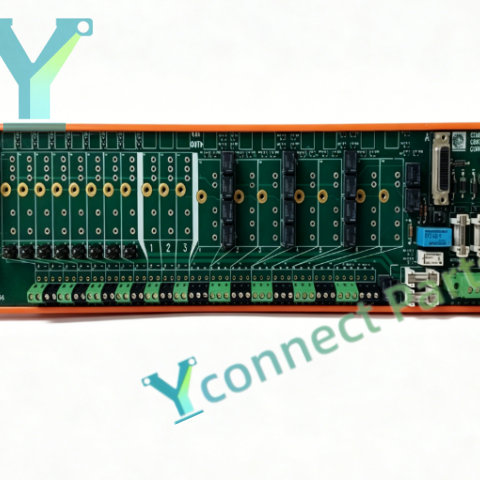

TRICONEX FTA-554 is a field termination assembly (FTA) developed for Triconex TMR safety instrumented systems (SIS). This safety termination unit acts as the wiring interface between Tricon analog I/O modules and field transmitters, sensors and regulating valves, realizing safe transmission of 4-20mA analog signals and voltage signals. The FTA supports configurable signal input and output, and can provide redundant 24VDC power supply for field transmitters with diode ORing circuit design. Each channel is equipped with built-in over-current protection and signal conditioning circuit, equipped with test points for convenient on-site circuit inspection and fault troubleshooting. It follows TMR safety design standards, matches the 2-out-of-3 voting principle of Tricon safety controller, and ensures signal stability when single redundant path fails. It adopts screw terminal block design for reliable field wiring, and effectively suppresses industrial electromagnetic interference through channel isolation. It cooperates with Tricon main chassis, analog modules and matched shielded cable assemblies. Widely applied in oil & gas, petrochemical, chemical and power industries, this TRICONEX FTA-554 field termination assembly undertakes analog signal wiring and signal conditioning work for ESD emergency shutdown, fire and gas detection and burner management safety interlock systems.

Specifications:

Manufacturer: TRICONEX

Model: FTA-554

Product Type: Tricon Field Termination Assembly

Supported Signal: 4~20mA, multi-range voltage signal

Transmitter Power: Redundant 24VDC supply, diode ORing

Safety Level: SIL3 capable

Connection: Screw terminals

Feature: Per-channel over-current protection, built-in test points, channel signal conditioning, anti-interference isolation design

Operating Temperature: 0℃ ~ +60℃

Humidity: 5% to 95% non-condensing
