Product Details:

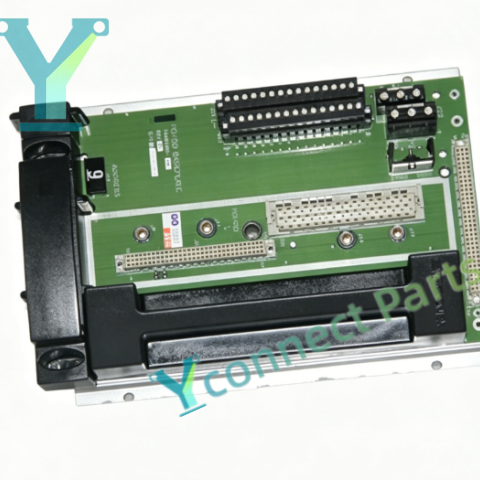

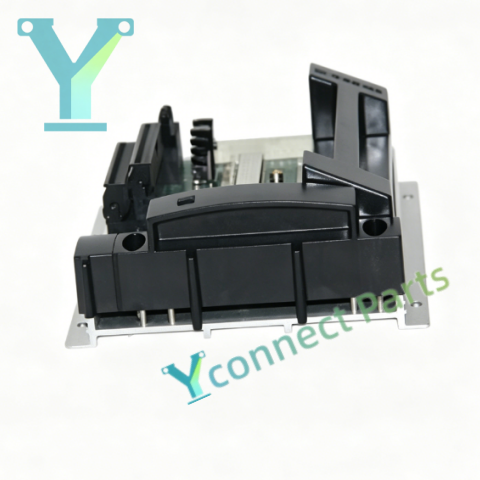

TRICONEX DO2401 is a 16-channel TMR digital output module designed for Triconex safety instrumented systems (SIS). This TMR safety module receives safety interlock commands from the Tricon safety controller, converts digital logic signals into field drive signals, and transmits stable output signals to solenoid valves, trip relays and alarm actuators. The module adopts triple modular redundant 2-out-of-3 voting architecture, which can maintain normal output operation when one internal redundant channel fails, eliminating single point failure risk for safety control loops. Each channel is equipped with built-in over-current and short-circuit protection, and continuous self-diagnosis function can detect circuit faults and upload alarm information to the safety controller in real time. The module supports hot swap operation, maintenance personnel can replace the faulty module online without shutting down the whole safety system, reducing system downtime. It cooperates with Tricon main chassis, digital output termination panels and matched shielded cable assemblies. Widely applied in oil & gas, petrochemical, chemical and power industries, this TRICONEX DO2401 digital output module undertakes safety trip and alarm control work for ESD emergency shutdown, fire and gas detection and burner management safety interlock systems.

Specifications:

Manufacturer: TRICONEX

Model: DO2401

Product Type: Tricon 16-point Digital Output Module

Channel Count: 16 points

Output Rating: 24VDC, 2A per channel

Safety Level: SIL3 capable

Isolation: Per-channel galvanic isolation

Feature: Triple modular redundancy, hot swappable, per-channel over-current protection, continuous fault self-diagnosis

Operating Temperature: 0℃ ~ +60℃

Humidity: 5% to 95% non-condensing
