Product Details:

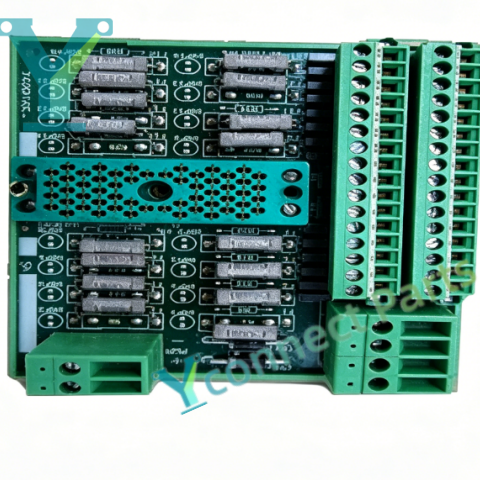

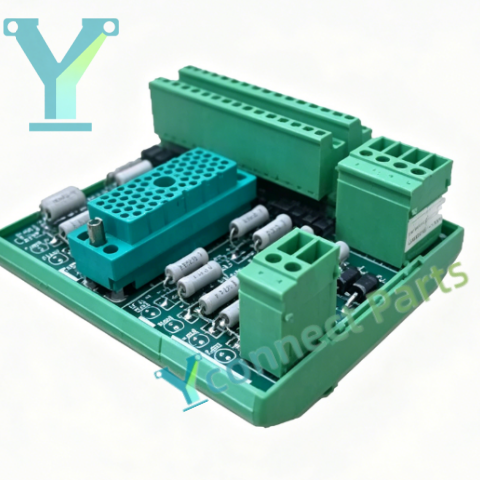

TRICONEX 9761-210 is a 16-point 4-20mA analog input termination panel built for Triconex TMR safety instrumented systems (SIS). This TMR safety field terminal panel acts as the wiring interface between Tricon analog input modules and field transmitters, collecting 4-20mA current signals from pressure, temperature and flow field instruments and converting current signals into stable voltage signals for safety analog I/O modules. Each signal channel is equipped with a built-in 250 ohm precision shunt resistor to realize accurate signal conversion and ensure signal integrity during transmission. The termination panel adopts industrial-grade PCB and high-quality cage screw terminals, supporting 12~24AWG instrument wires, with stable contact performance and strong anti-electromagnetic interference and anti-vibration capability to adapt to harsh industrial cabinet environments. This panel is compatible with Tricon 3700A and 3701A analog input modules, meeting SIL3 safety application requirements. It cooperates with Tricon main chassis, analog input modules and matched shielded cable assemblies. Widely applied in oil & gas, petrochemical, chemical and power industries, this TRICONEX 9761-210 termination panel undertakes field analog signal wiring work for ESD emergency shutdown, fire and gas detection and burner management safety interlock systems.

Specifications:

Manufacturer: TRICONEX

Model: 9761-210

Product Type: Tricon 16-point 4-20mA Analog Input Termination Panel

Signal Points: 16 points

Signal Type: 4~20mA

Channel Resistor: 250 ohm precision shunt resistor per channel

Compatible Module: 3700A,3701A

Feature: Cage screw terminals, DIN rail mounting, SIL3 capable

Operating Temperature: -20℃ ~ +70℃

Humidity: 5% to 95% non-condensing
