Product Details:

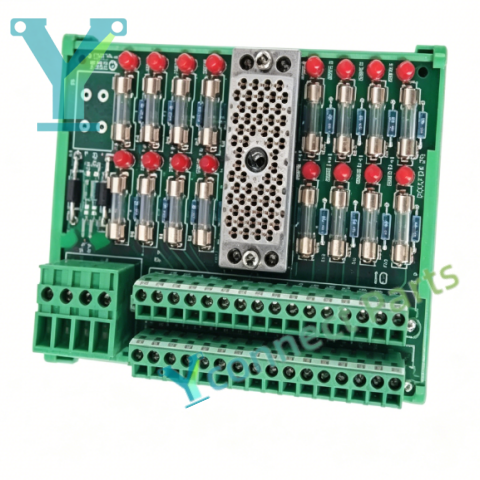

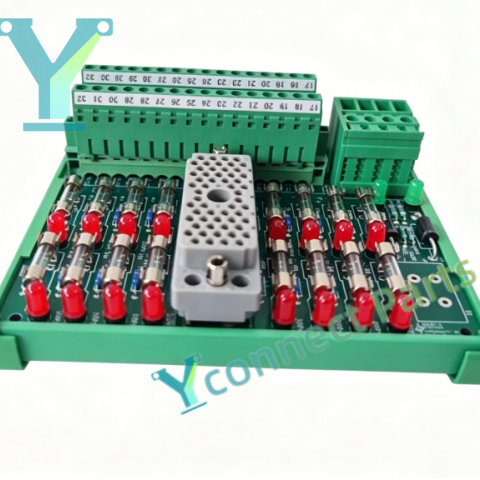

TRICONEX 9760-210 is a 16-point 4-20mA analog current input termination panel developed for Triconex TMR safety instrumented systems (SIS). This TMR safety field terminal panel serves as the wiring interface between Tricon analog input modules and field transmitters, collecting 4-20mA analog current signals from pressure, temperature and flow sensors and transmitting stable field signals to the safety analog I/O modules. The termination panel adopts industrial-grade PCB and high-quality cage screw terminals, supporting 14-22AWG instrument wires, featuring stable contact performance and excellent anti-vibration and anti-electromagnetic interference performance to adapt to harsh industrial cabinet environments. Each signal channel is equipped with built-in 250 ohm precision resistor to convert 4-20mA current signal into voltage signal for module acquisition. This panel is compatible with Tricon 3700A and 3701A analog input modules, realizing reliable analog signal transmission for SIL3 safety control loops. It cooperates with Tricon main chassis, analog input modules and matched shielded cable assemblies. Widely applied in oil & gas, petrochemical, chemical and power industries, this TRICONEX 9760-210 termination panel undertakes field analog signal wiring work for ESD emergency shutdown, fire and gas detection and burner management safety interlock systems.

Specifications:

Manufacturer: TRICONEX

Model: 9760-210

Product Type: Tricon 16-point 4-20mA Analog Current Input Termination Panel

Signal Points: 16 points

Signal Type: 4~20mA

Channel Resistor: 250 ohm precision resistor per channel

Compatible Module: 3700A,3701A

Feature: Cage screw terminals, DIN rail mounting, SIL3 capable

Operating Temperature: -20℃ ~ +70℃

Humidity: 5% to 95% non-condensing
