Product Details:

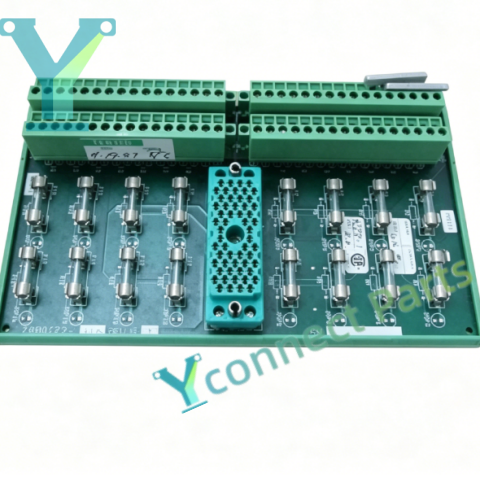

TRICONEX 9668-110 is a 16-point non-commoned relay output termination panel designed for Triconex TMR safety instrumented systems (SIS). This TMR safety field terminal panel acts as the wiring interface between Tricon relay output modules and field actuators, transmitting safety control relay signals from I/O modules to on-site solenoid valves, trip devices and alarm equipment. The termination panel adopts non-commoned independent channel design, each channel is equipped with separate LOAD and PWR terminals to avoid cross-channel interference, and each channel has built-in fuse protection for short-circuit prevention. It adopts industrial-grade PCB and high-quality screw terminals, featuring stable contact performance and excellent anti-vibration and anti-electromagnetic interference performance to adapt to harsh industrial cabinet environments. This panel is compatible with Tricon 3636R and 3636T 32-point relay output modules; two pieces of 9668-110 panels are required to match one 32-point relay module. It cooperates with Tricon main chassis, relay output modules and matched shielded cable assemblies. Widely applied in oil & gas, petrochemical, chemical and power industries, this TRICONEX 9668-110 termination panel undertakes field relay output wiring work for ESD emergency shutdown, fire and gas detection and burner management safety interlock systems.

Specifications:

Manufacturer: TRICONEX

Model: 9668-110

Product Type: Tricon Non-Commoned Relay Output Termination Panel

Signal Points: 16 points

Contact Rating: 250VAC / 30VDC, 2A

Relay Type: SPDT

Channel Protection: Individual fuse per channel

Compatible Module: 3636R,3636T

Feature: Non-commoned channel design, screw terminal connection, DIN rail mounting

Operating Temperature: -20℃ ~ +70℃

Humidity: 5% to 95% non-condensing
