Product Details:

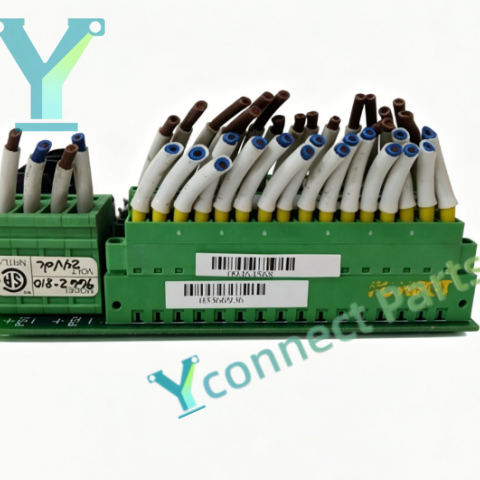

TRICONEX 9662-810 is a 16-point 24VDC commoned digital output termination panel designed for Triconex TMR safety instrumented systems (SIS). This TMR safety field terminal panel serves as the wiring bridge between Tricon digital output modules and field actuators, transmitting safety control output signals from I/O modules to on-site solenoid valves, trip relays and alarm devices. The termination panel has shared PWR+ and PWR- power terminals, each output channel is equipped with independent fuse protection and blown-fuse indicator, which can quickly cut off abnormal current and display fault status for fast troubleshooting. It adopts industrial-grade PCB and high-quality screw terminals, featuring stable contact performance and strong anti-vibration and anti-electromagnetic interference capability to adapt to harsh industrial cabinet environments. This panel is compatible with Tricon 3625 and 3603E digital output modules, and meets SIL3 safety application requirements. It cooperates with Tricon main chassis, digital output modules and matched shielded cable assemblies. Widely applied in oil & gas, petrochemical, chemical and power industries, this TRICONEX 9662-810 termination panel undertakes field output wiring work for ESD emergency shutdown, fire and gas detection and burner management safety interlock systems.

Specifications:

Manufacturer: TRICONEX

Model: 9662-810

Product Type: Tricon 24VDC Commoned Digital Output Termination Panel

Signal Points: 16 points

Rated Voltage: 24 VDC

Channel Protection: Individual fuse per channel with blown fuse indicator

Compatible Module: 3625,3603E

Feature: Common power terminals, screw terminal connection, DIN rail mounting, SIL3 capable

Operating Temperature: -20℃ ~ +70℃

Humidity: 5% to 95% non-condensing
