Product Details:

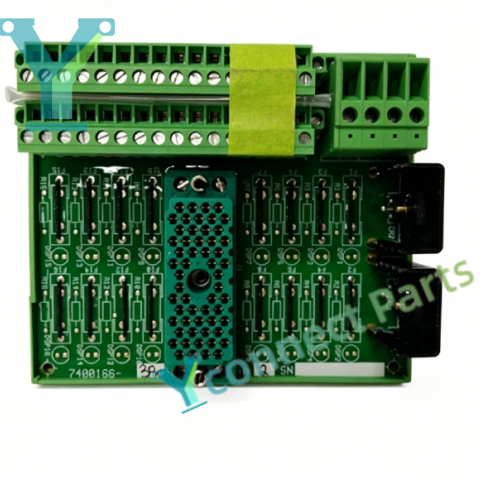

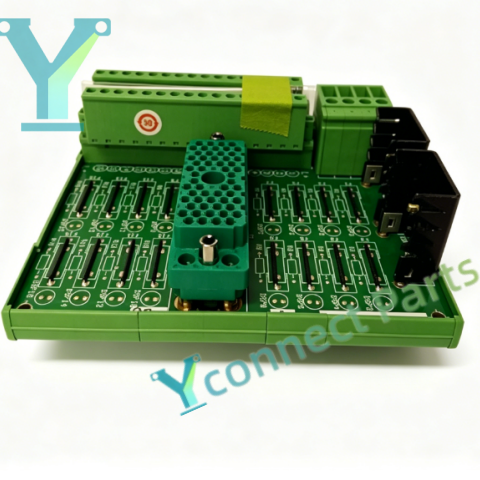

TRICONEX 9662-610 is a 16-point 24VDC commoned digital output termination panel developed for Triconex TMR safety instrumented systems (SIS). This TMR safety field terminal panel serves as the wiring interface between Tricon digital output modules and field actuators, transferring safety control output signals from I/O modules to on-site solenoid valves, alarm devices and other field equipment. The termination panel is equipped with commoned power terminals of PWR+ and PWR-, adopting industrial-grade PCB and high-quality screw terminals, featuring stable contact performance and excellent anti-vibration and anti-electromagnetic interference performance to adapt to harsh industrial cabinet environments. This panel is compatible with Tricon 3625 high-density digital output module, supporting SIL3 safety application requirements. Each signal channel adopts independent circuit routing design, which is convenient for field wiring, circuit inspection and fault troubleshooting. It cooperates with Tricon main chassis, digital output modules and matched shielded cable assemblies. Widely applied in oil & gas, petrochemical, chemical and power industries, this TRICONEX 9662-610 termination panel undertakes field output wiring work for ESD emergency shutdown, fire and gas detection and burner management safety interlock systems.

Specifications:

Manufacturer: TRICONEX

Model: 9662-610

Product Type: Tricon 24VDC Commoned Digital Output Termination Panel

Signal Points: 16 points

Rated Voltage: 24 VDC

Compatible Module: 3625

Feature: Common power terminals, screw terminal connection, DIN rail mounting, SIL3 capable

Operating Temperature: -20℃ ~ +70℃

Humidity: 5% to 95% non-condensing
