Product Details

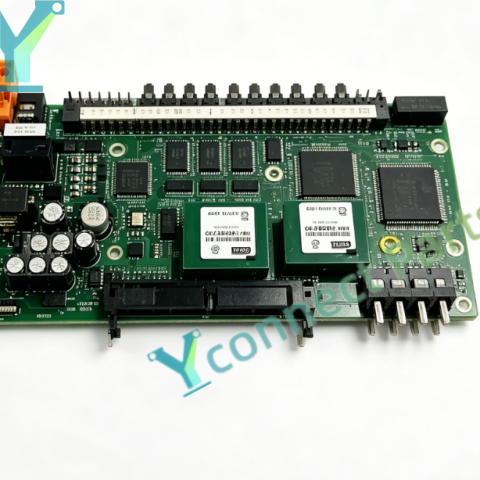

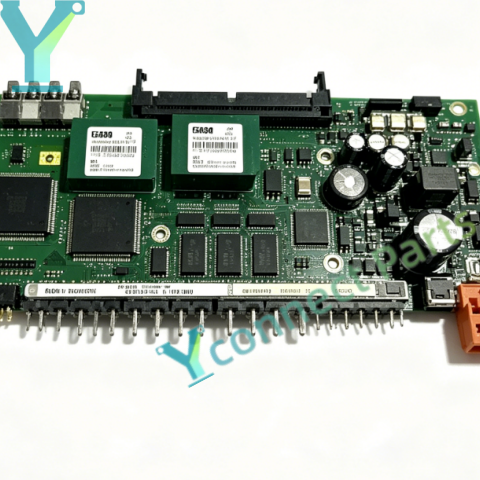

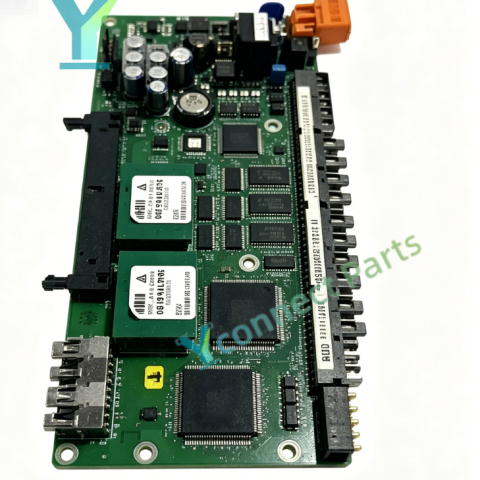

ABB PPC907BE 3BHE024577R0101 is a high-performance power control processor module for ABB AC800PEC power electronic control platform and UNITROL generator excitation systems. The power control processor module serves as the core processing unit of high-power converter equipment. It executes real-time closed-loop control algorithms, collects voltage and current feedback signals, calculates control outputs, and sends drive commands to pulse distribution boards through high-speed fiber communication. This ABB PPC907BE module adopts high-speed processor architecture to ensure fast response for power regulation. The AC800PEC core control board has built-in self-diagnostic function and LED status indicators, continuously monitoring hardware operation, fiber communication links and signal status, and triggering fault alarm signals for rapid troubleshooting. It adopts reinforced galvanic isolation design to separate low-voltage control circuits from high-power main circuits, effectively blocking surge and electromagnetic interference from the power side. Conformal coated circuit board improves resistance to dust, moisture and vibration, maintaining stable operation in harsh industrial control cabinets. Widely applied in power plant generator excitation systems, medium voltage frequency converters and power quality control equipment, it is critical spare part for power electronic system maintenance, upgrade and renovation. Rack plug-in structure enables convenient installation and quick field replacement.

Parameters and Specifications

Brand: ABB

Model: PPC907BE 3BHE024577R0101

Product Type: Power Control Processor Module

Compatible System: ABB AC800PEC, UNITROL generator excitation system

Function: Real-time power closed-loop control, fiber communication, signal processing

Isolation: Reinforced galvanic signal isolation

Feature: Built-in self-diagnosis, LED status indicator, conformal coating

Power Supply: 24V DC

Operating Temperature: -20°C ~ +70°C

Protection Class: IP20

Condition: New or tested used spare parts
