Product Details

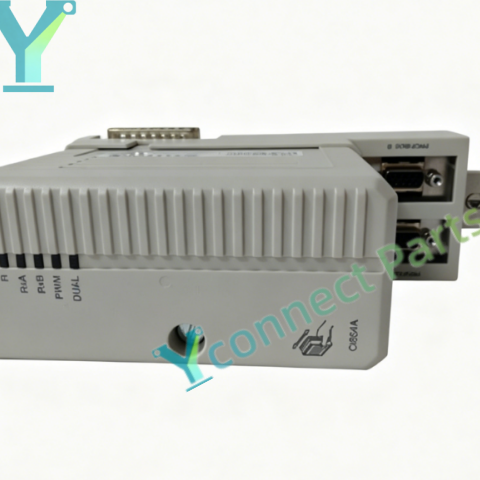

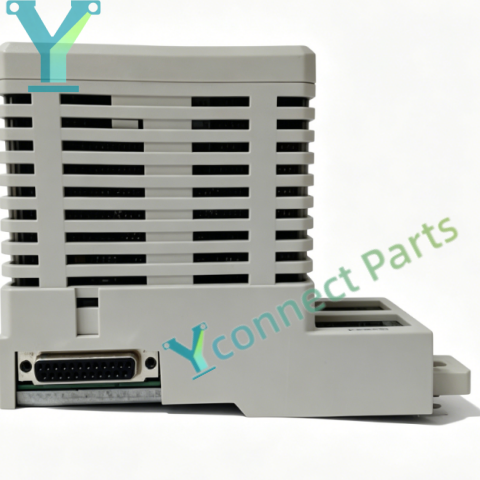

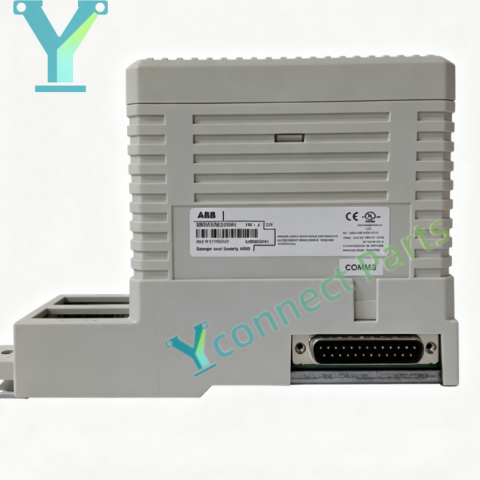

ABB CI854AK01 3BSE030220R1 is a PROFIBUS DP communication interface kit developed for ABB AC800M and System 800xA distributed control systems. The PROFIBUS DP communication interface kit consists of CI854 communication module and TP854 baseplate, acting as the PROFIBUS DP master station to establish reliable data connection between AC800M controller and PROFIBUS DP slave devices. This ABB CI854AK01 kit comes with dual PROFIBUS DP channels, supporting communication speed up to 12Mbit/s. It can connect variable frequency drives, remote I/O units, sensors and other field automation equipment, and supports redundant bus configuration to improve system stability. The AC800M DCS master communication unit has built-in self-diagnostic function and LED status indicators to monitor bus communication quality and hardware running status in real time for fast fault location. It supports hot swap function, users can replace the module without shutting down the whole DCS system to reduce production downtime. It can be configured through Control Builder engineering software for communication parameter setup and program debugging. Widely applied in power, metallurgy, chemical, water treatment and paper making industries, it is essential spare part for DCS system transformation, upgrade and daily maintenance. Rack plug-in structure enables convenient installation and quick field replacement.

Parameters and Specifications

Brand: ABB

Model: CI854AK01 3BSE030220R1

Product Type: PROFIBUS DP Communication Interface Kit

Compatible System: ABB AC800M, System 800xA DCS

Kit Components: CI854 communication module, TP854 baseplate

Communication: Dual PROFIBUS DP channels, maximum 12Mbit/s

Feature: Redundant bus support, hot swappable, LED diagnostic indicator

Power Supply: 24V DC

Operating Temperature: -20°C ~ +70°C

Protection Class: IP20

Condition: New or tested used spare parts
