Product Details

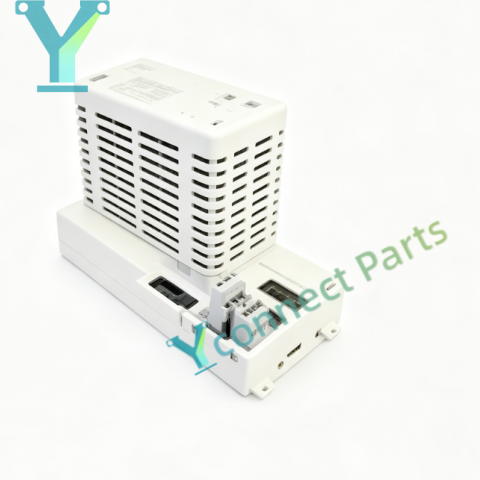

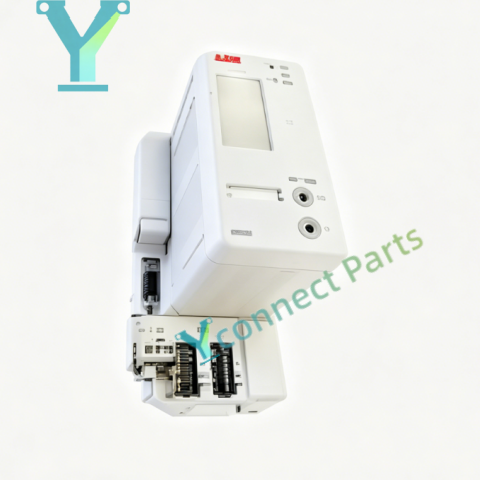

ABB CI810V1 3BSE008584R1 is an AF100 fieldbus communication module for ABB AC800M and System 800xA DCS distributed control systems. The AF100 fieldbus communication module is used to connect AC800M controller and S800 remote I/O stations, realizing bidirectional transmission of process data, control commands and equipment status signals over AF100 fieldbus. This ABB CI810V1 module supports AF100 fieldbus protocol, and can expand the system I/O capacity by connecting multiple S800 I/O modules. The AC800M DCS interface unit adopts galvanic isolation design to block surge and electromagnetic interference from field side and improve the stability of the whole control system. It has built-in self-diagnostic function and LED status indicators to monitor bus communication quality and hardware operating status, and output fault alarm information once communication interruption or hardware failure occurs. It supports hot swap function, operators can replace the module without shutting down the DCS system to reduce production downtime. It can be configured via Control Builder engineering software for communication parameter setup and program debugging. Widely applied in power, metallurgy, chemical, pulp & paper and water treatment industries, it is essential spare part for DCS system maintenance, upgrade and transformation. Rack plug-in structure enables convenient installation and quick field replacement.

Parameters and Specifications

Brand: ABB

Model: CI810V1 3BSE008584R1

Product Type: AF100 Fieldbus Communication Module

Compatible System: ABB AC800M, System 800xA DCS

Bus Type: AF100 fieldbus

Function: Connect controller and S800 remote I/O stations

Feature: Hot swappable, galvanic isolation, LED diagnostic indicator

Power Supply: 24V DC

Operating Temperature: -20°C ~ +70°C

Protection Class: IP20

Condition: New or tested used spare parts
