Product Details

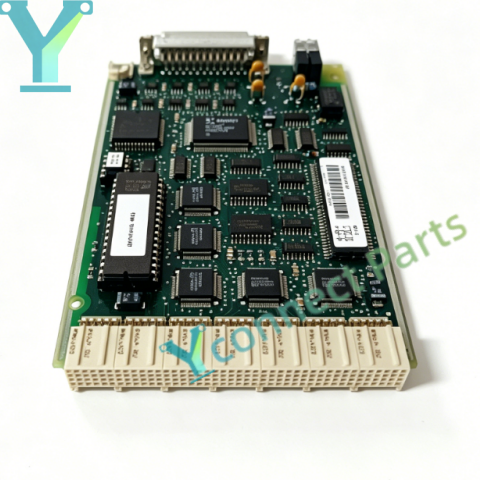

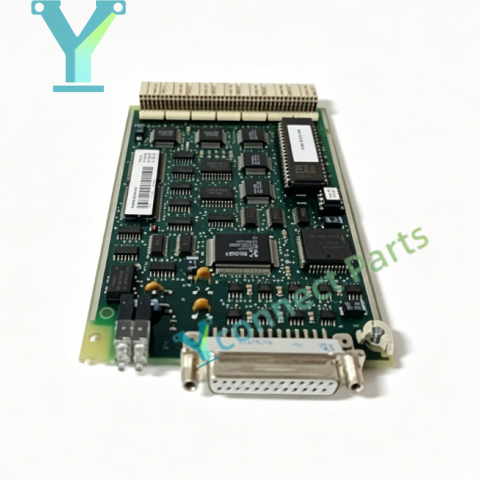

ABB CI570 3BSE001440R1 is a communication interface module for ABB MasterPiece and S100 distributed control systems. The communication interface module establishes high-speed bus connection between the main controller and S100 remote I/O stations, transmitting process values, control instructions and equipment status signals bidirectionally. This ABB CI570 module supports S100 I/O bus protocol and can expand the control system I/O capacity by connecting multiple S100 I/O modules. The S100 I/O bus interface unit is equipped with galvanic isolation circuit, which effectively suppresses electromagnetic interference from field wiring and protects the main controller hardware. It has built-in self-diagnostic function and LED status indicators to monitor bus communication quality and module operating state in real time, and output fault prompts for rapid maintenance. The robust circuit board design adapts to dust and vibration in industrial control cabinets. Widely used in paper making, chemical, metallurgy and water treatment industries for distributed automation control, it is important spare part for S100 control system maintenance and upgrade. Rack plug-in structure enables convenient installation and quick field replacement.

Parameters and Specifications

Brand: ABB

Model: CI570 3BSE001440R1

Product Type: Communication Interface Module

Compatible System: ABB MasterPiece, S100 distributed control system

Bus Type: S100 I/O bus

Feature: Galvanic isolation, LED status indicator, built-in self-diagnosis

Power Supply: 24V DC

Operating Temperature: -20°C ~ +70°C

Protection Class: IP20

Condition: New or tested used spare parts
