Product Details:

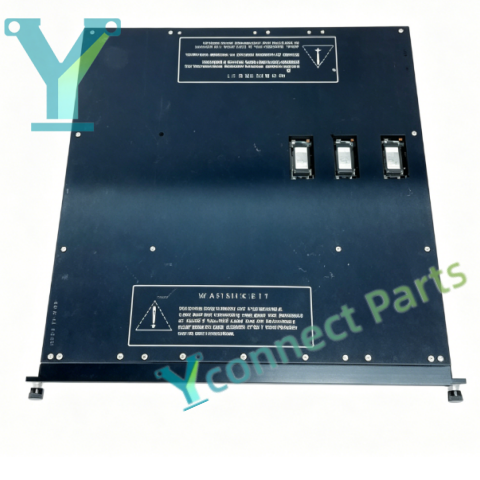

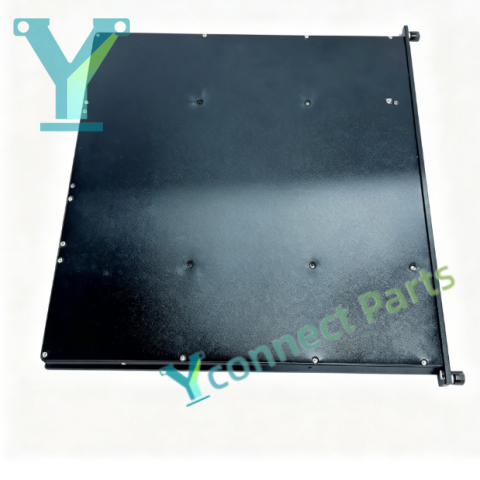

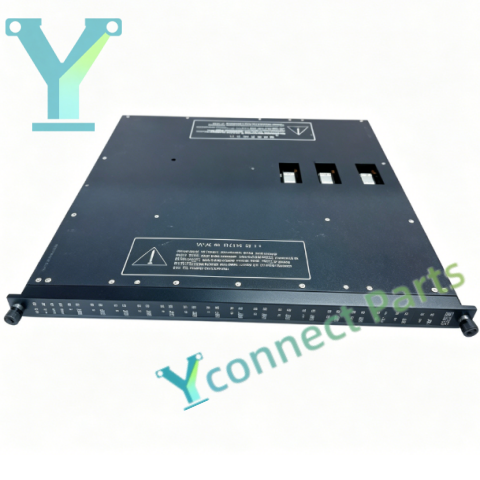

TRICONEX 3623T is a 16-channel supervised digital output module built with triple modular redundancy (TMR) architecture for Triconex Tricon safety instrumented systems (SIS). This TMR safety I/O module receives safety interlock commands from the Tricon main processor and converts control signals into 120VDC supervised output to drive field solenoid valves, trip actuators and safety shutdown devices. The Tricon 16-channel 120VDC supervised digital output module supports 90–150V DC operating range, adopting commoned channel design and integrated loopback supervision circuits. Each channel continuously monitors load status, capable of detecting open load, short circuit and circuit degradation, providing comprehensive channel diagnostics for safety critical loops. The module adopts triple redundant signal processing circuits and 2-out-of-3 voting logic to eliminate single point of failure and guarantee reliable safety output under severe industrial conditions. It integrates surge protection and isolation circuits to suppress electromagnetic noise and ground loop interference. The module supports hot swap operation, maintenance personnel can replace the faulty module online without shutting down the whole safety system. Front panel LED indicators display module PASS, FAULT, ACTIVE and each channel output status for fast on-site inspection and troubleshooting. It can be installed in standard Tricon rack and cooperates with Tricon processor and matching termination panels. Widely applied in oil & gas, petrochemical, chemical and power industries, this TRICONEX 3623T supervised digital output module executes safety shutdown and interlock control tasks for ESD emergency shutdown, fire and gas detection and burner management safety interlock systems.

Specifications:

Manufacturer: TRICONEX (Schneider Electric)

Model: 3623T

Product Type: Tricon 16-Channel 120VDC Supervised Digital Output Module

System Compatibility: Tricon TMR Safety Instrumented System

Output Channels: 16 supervised digital output channels, commoned design

Output Voltage: 120VDC nominal, 90–150V DC operating range

Max Channel Current: 0.8A per channel

Architecture: Triple Modular Redundancy(TMR), 2-out-of-3 voting

Safety Level: SIL3 certified

Diagnostics: Loopback load supervision, open circuit, short circuit and hardware real-time detection

Feature: Hot swappable, designed for long steady-state safety output loops

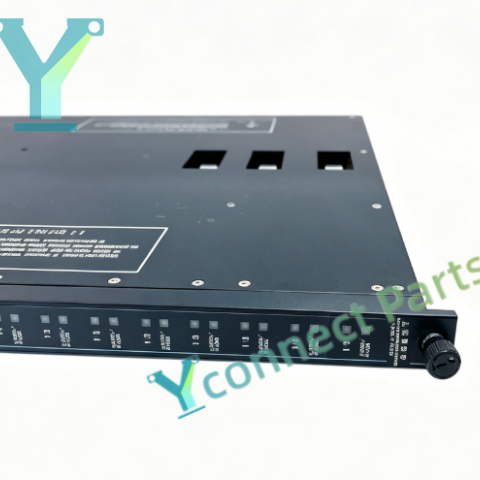

Status Indicator: PASS, FAULT, ACTIVE, channel status LED indicators

Mounting: Tricon rack plug-in

Operating Temperature: -40℃ ~ +70℃

Humidity: 5% to 95% non-condensing

Certifications: IEC61508, SIL3, CE
