Product Details:

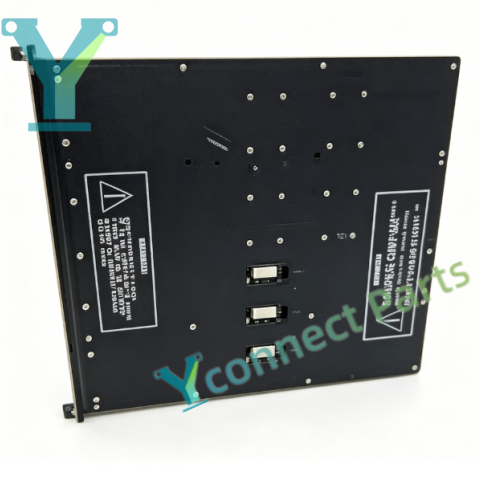

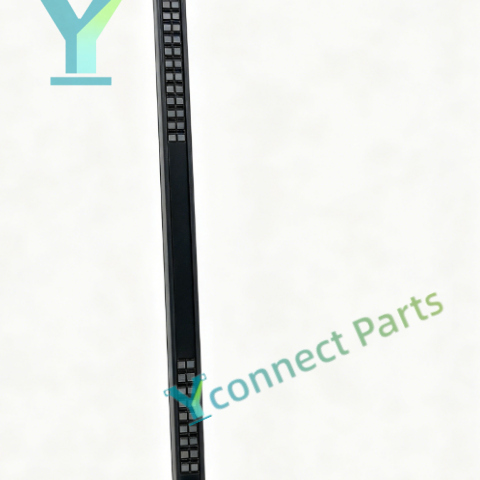

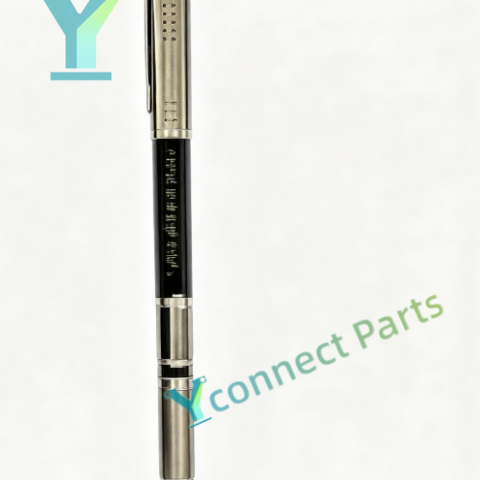

TRICONEX 3607E is a 16-channel non-commoned optical isolated digital output module built with triple modular redundancy (TMR) architecture for Triconex Tricon safety instrumented systems (SIS). This TMR safety I/O module receives safety interlock commands from the Tricon main processor and converts control signals into 48VDC output to drive field solenoid valves, alarm indicators and safety relay devices. The Tricon 16-channel 48VDC digital output module supports 44–80V DC working range, each channel adopts independent non-commoned circuit design and optical isolation to prevent fault cross-interference between channels. It adopts triple redundant signal processing circuits and 2-out-of-3 voting logic to eliminate single point of failure and guarantee reliable safety output. The module integrates continuous load diagnosis function to detect channel open circuit, short circuit and hardware abnormalities, and uploads fault alarm messages to the Tricon engineering workstation in real time. The module supports hot swap operation, maintenance personnel can replace the faulty module online without shutting down the whole safety system. Front panel LED indicators display module PASS, FAULT and each channel output status for fast on-site inspection and troubleshooting. It needs to match the corresponding external termination panel for field wiring connection, and can be installed in standard Tricon rack to cooperate with Tricon processor and power supply modules. Widely applied in oil & gas, petrochemical, chemical and power industries, this TRICONEX 3607E digital output module executes safety shutdown and interlock control for ESD emergency shutdown, fire and gas detection and burner management safety interlock systems.

Specifications:

Manufacturer: TRICONEX (Schneider Electric)

Model: 3607E

Product Type: Tricon 16-Channel 48VDC Digital Output Module

System Compatibility: Tricon TMR Safety Instrumented System

Output Channels: 16 optical isolated digital output channels, non-commoned design

Output Voltage: 44–80V DC nominal 48VDC

Architecture: Triple Modular Redundancy(TMR), 2-out-of-3 voting

Safety Level: SIL3 certified

Isolation: Optical isolation between field and system side

Diagnostics: Load status, open circuit, short circuit and hardware real-time monitoring

Feature: Hot swappable, independent channel circuit, matched with external termination panel

Status Indicator: PASS, FAULT, channel status LED indicators

Mounting: Tricon rack plug-in

Operating Temperature: 0℃ ~ +60℃

Humidity: 5% to 95% non-condensing

Certifications: IEC61508, SIL3, CE
