Product Details:

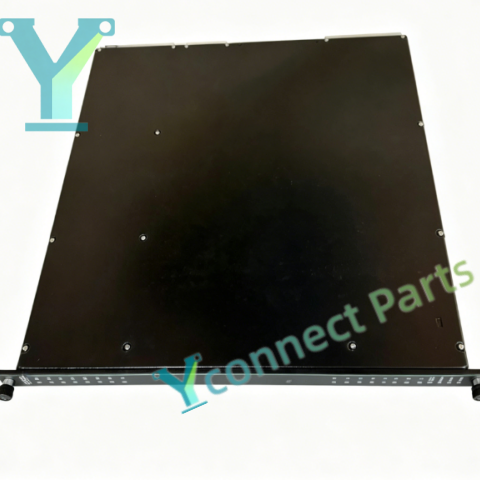

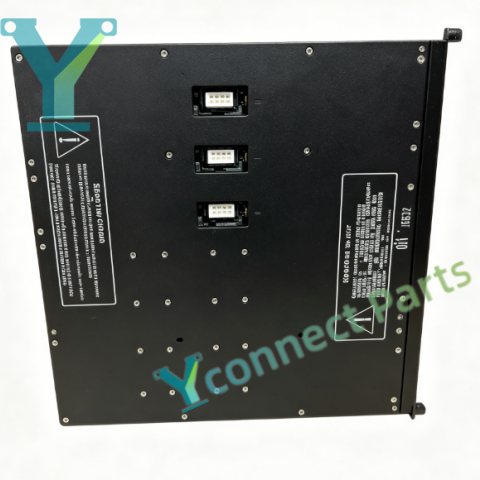

TRICONEX 3601E is a 16-channel optical isolated digital output module built with triple modular redundancy (TMR) architecture for Triconex Tricon safety instrumented systems (SIS). This TMR safety I/O module receives safety control commands from the Tricon main processor and converts digital instructions into 115V AC output signals to drive field solenoid valves, alarm relays and motor control devices. The Tricon 16-channel 115V AC digital output module adopts optical isolation design to separate the controller backplane and field load circuits, blocking surge voltage, ground loop noise and electromagnetic interference in heavy industrial sites. Each channel uses triple redundant signal processing circuits and 2-out-of-3 voting logic to eliminate single point of failure and guarantee stable safety output. The module supports continuous load diagnosis to detect open circuit, short circuit and hardware faults, and uploads fault alarm messages to the Tricon engineering workstation in real time. The module supports hot swap operation, maintenance personnel can replace the faulty module online without shutting down the whole safety system. Front panel LED indicators display module PASS, FAULT and each channel output status for fast on-site inspection and troubleshooting. It can be installed in standard Tricon rack and cooperates with Tricon processor and matching termination panels. Widely applied in oil & gas, petrochemical, chemical and power industries, this TRICONEX 3601E digital output module executes safety shutdown and interlock control for ESD emergency shutdown, fire and gas detection and burner management safety interlock systems.

Specifications:

Manufacturer: TRICONEX (Schneider Electric)

Model: 3601E

Product Type: Tricon 16-Channel 115V AC Digital Output Module

System Compatibility: Tricon TMR Safety Instrumented System

Output Channels: 16 optical isolated digital output channels

Output Voltage: 115V AC, 47-63Hz

Architecture: Triple Modular Redundancy(TMR), 2-out-of-3 voting

Safety Level: SIL3 certified

Isolation: Optical isolation between field and system side

Diagnostics: Load status, open circuit, short circuit and hardware real-time monitoring

Feature: Hot swappable, for solenoid valves and alarm equipment control

Status Indicator: PASS, FAULT, channel status LED indicators

Mounting: Tricon rack plug-in

Operating Temperature: 0℃ ~ +60℃

Humidity: 5% to 95% non-condensing

Certifications: IEC61508, SIL3, CE
