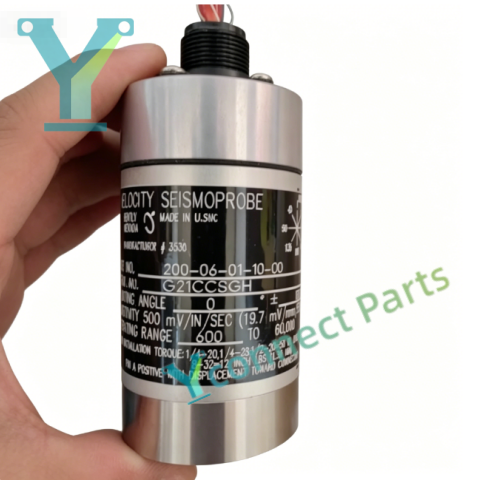

Product Details: Bently Nevada 9200-06-01-01-00 is a self-generating two-wire Seismoprobe Velocity Transducer, adopting moving coil principle without external power supply, designed for measuring absolute casing vibration of rotating machinery. This Seismoprobe Vibration Sensor outputs voltage signal proportional to vibration velocity, which can be connected to rack monitoring modules or portable vibration analyzers to continuously collect bearing housing vibration data. Its standard sensitivity is 20 mV/mm/s (500 mV/in/s), tolerance within ±5%. According to ordering code 9200-06-01-01-00, this transducer supports 0° fixed mounting orientation, uses 1/4-28 UNF stud mounting base and does not carry hazardous area certification. The operating temperature range is -29℃ ~ +121℃, suitable for high-temperature machine casing environments. The frequency response covers 10Hz ~ 1kHz, transverse sensitivity ≤10%, and can withstand 50g transverse mechanical impact. During installation, the sensor body must be firmly fastened on machine casing surface, keep the sensitive axis aligned with the vibration measurement direction, loose mounting will cause signal distortion and measurement error. It matches with 9571 series shielded interconnect cable for signal transmission, and signal cable should be routed separately from high-voltage power cables to reduce electromagnetic interference. Regular maintenance includes visual inspection of housing corrosion, thread damage, connector and cable sheath aging. Periodic calibration can be completed on vibration shaker. Widely used in power generation, petrochemical and heavy industrial fields, this Absolute Vibration Transducer monitors turbines, centrifugal compressors, generators, fans and pumps, tracks casing vibration trend, realizes early bearing fault warning and avoids unplanned equipment shutdown.

Core Attributes:

Brand: Bently Nevada

Model: 9200-06-01-01-00

Product Type: Seismoprobe Two-Wire Velocity Transducer

Sensitivity: 20 mV/mm/s (500 mV/in/s), ±5%

Frequency Response: 10Hz ~ 1kHz

Mounting: 1/4-28 UNF stud mount, 0° fixed orientation

Measurement Principle: Self-generating moving coil

Features: No external power supply, absolute casing vibration measurement, high impact resistance, wide temperature range, low transverse sensitivity
