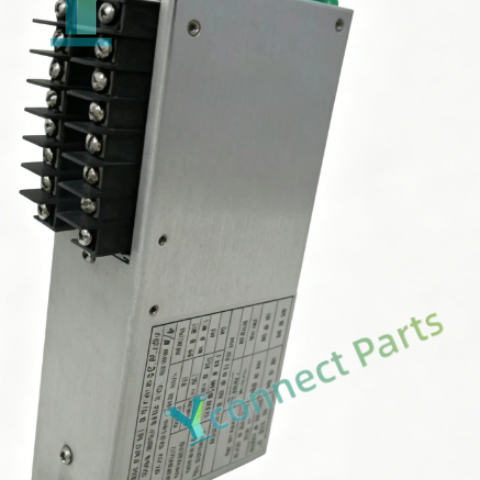

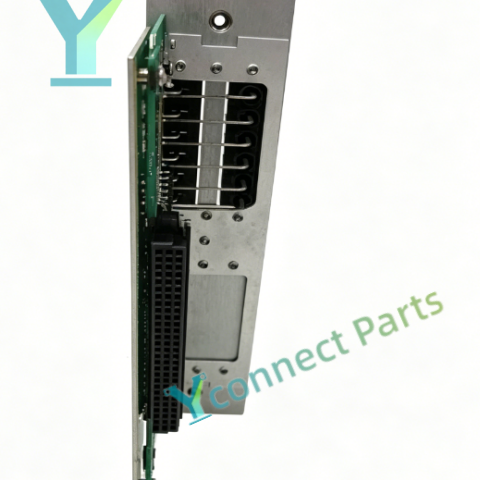

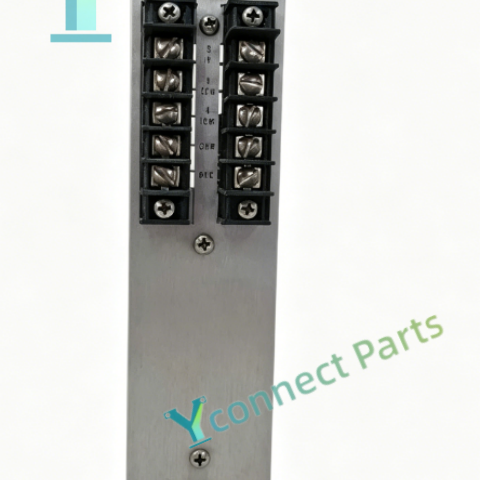

Product Details: Bently Nevada 84157-01 is a Xducer I/O & Record Terminals module designed for the Bently Nevada 3300 machinery protection system, complying with API 670 machinery protection standard. This Signal Input Output Board accepts LVDT linear displacement transducer input signals, converts mechanical displacement variation into standard electrical signal, and provides recorder terminal interfaces for connecting recording instruments to capture continuous equipment status data. It adopts plug-in rack installation structure, powered by rack backplane, integrating signal conditioning, signal conversion and terminal distribution circuit. Built-in fault diagnosis function can identify sensor open circuit, short circuit and wiring fault, output fault indication. The circuit board has strong anti-electromagnetic interference performance, adapting to power plant and petrochemical industrial environments with vibration and electric field interference. During installation, field LVDT signal cables need to use shielded wire and be separated from high-voltage power cables to reduce signal noise. Regular maintenance should check terminal wiring tightness and module operating status, and periodic calibration can ensure long-term measurement accuracy. Widely used in power generation, petrochemical and heavy industrial fields, this Recorder Terminal Module monitors turbine valve position, thrust displacement and other linear displacement parameters, realizes real-time position monitoring and historical data recording, helps maintenance personnel track equipment state trend and reduce unplanned equipment shutdown.

Core Attributes:

Brand: Bently Nevada

Model: 84157-01

Product Type: Xducer I/O & Record Terminals Module

Input: LVDT linear displacement transducer signal input

Mount: Rack plug-in module for 3300 system

Application: Linear displacement monitoring and signal recording for rotating machinery

Features: LVDT signal conditioning, recorder terminal output, sensor fault detection, API 670 compliant, strong EMI resistance
