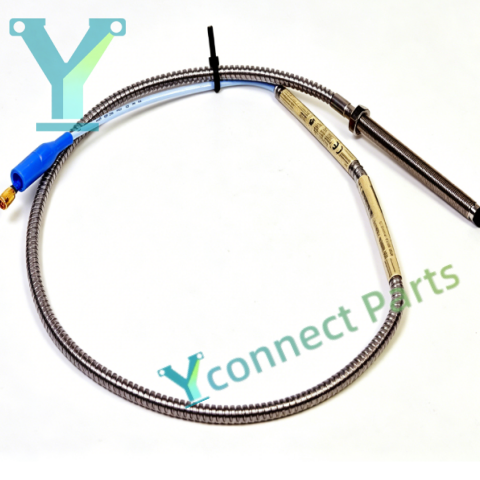

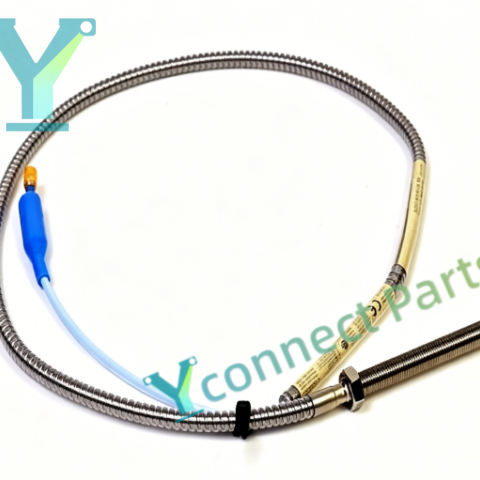

Product Details: Bently Nevada 330102-00-40-10-02-05 is a 3300 XL series 8mm Proximity Probe with armored cable and ATEX certification, serving as the sensing head of eddy current transducer system for Bently Nevada TSI machinery protection system. This Eddy Current Vibration Sensor cooperates with matching extension cable and 3300 XL proximitor sensor, converting the gap variation between probe tip and rotating metal shaft into proportional voltage signals, to realize non-contact high-precision measurement of shaft radial vibration, thrust position, differential expansion and shaft eccentricity. It meets API 670 standard, adopts stainless steel probe body and armored cable structure, provides excellent mechanical protection against cable extrusion, abrasion and impact in harsh industrial environments. This variant 330102-00-40-10-02-05 features 4.0 inch probe case length and 1 meter armored cable, equipped with ClickLoc miniature coaxial connector, suitable for installation in limited space or hazardous industrial areas. The probe has good temperature stability and linearity, can resist strong electromagnetic interference. It is widely used in power generation, petrochemical and heavy industrial fields to monitor turbines, centrifugal compressors, generators and pumps. Continuous real-time shaft displacement and vibration data can help engineers detect early rotor faults, prevent catastrophic mechanical failure and reduce unplanned equipment shutdown.

Core Attributes:

Brand: Bently Nevada

Model: 330102-00-40-10-02-05

Product Type: 3300 XL 8mm Eddy Current Proximity Probe

Probe Diameter: 8mm

Case Length: 4.0 inch

Cable Spec: 1m armored cable, ClickLoc coaxial connector

Certification: ATEX, IECEx, API 670 compliant

Measuring Parameters: Radial shaft vibration, thrust position, shaft eccentricity, differential expansion

Features: Armored cable protection, explosion-proof certification, high linearity, temperature stability, anti mechanical abrasion
