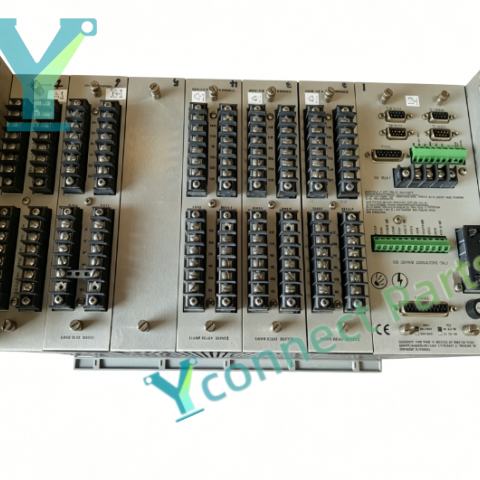

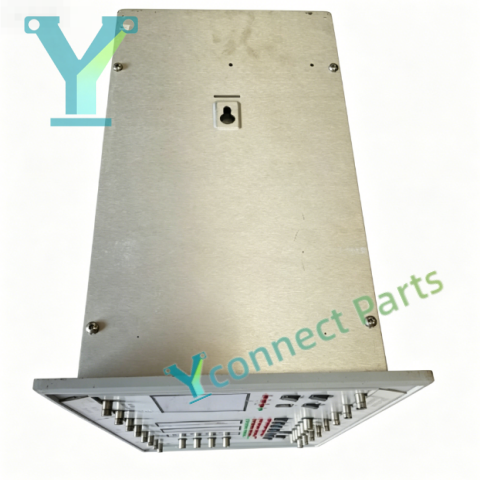

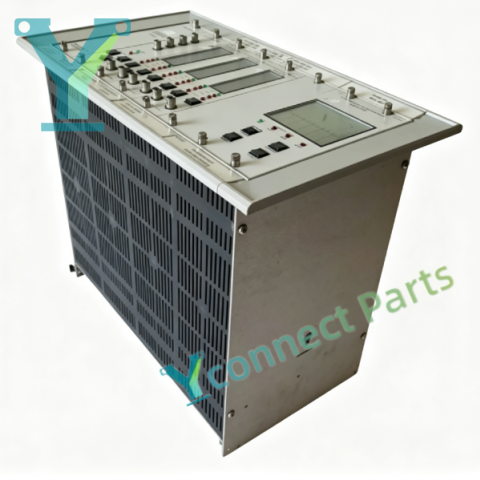

Product Details: Bently Nevada 3300/05-23-00-00 is an 8-slot System Rack Chassis serving as the mechanical and electrical backbone for the Bently Nevada 3300 rack-based machinery protection system. This TSI Rack Assembly provides installation slots, internal backplane bus and power distribution path for all 3300 series modules, including power supply units, system monitor cards, vibration monitors, proximity monitors and relay output modules. The internal backplane realizes stable data communication and signal interconnection between all inserted modules, enabling different monitoring cards to share measurement data, alarm status and system configuration information. According to the ordering code 3300/05-23-00-00, this rack adopts anti-static conductive plastic frame structure with 8 module slots, supporting standard 19-inch cabinet mounting. The modular design eliminates complex internal wiring, and supports flexible module combination according to different machinery monitoring requirements. Individual monitor modules can be hot swapped without powering down the whole rack during maintenance work. Built-in rack status monitoring circuit continuously detects bus communication faults and power supply abnormalities, and transmits fault warning signals to the system monitor module. Widely used in power generation, petrochemical and heavy industrial fields, this 3300 Series Rack cooperates with various monitoring modules to form a complete TSI system, achieving continuous vibration and displacement protection for turbines, centrifugal compressors, generators and pumps.

Core Attributes:

Brand: Bently Nevada

Model: 3300/05-23-00-00

Product Type: 8-slot System Rack Chassis

Total Slots: 8 module slots

Internal Structure: Backplane data bus and power distribution circuit

Mount: 19-inch standard cabinet mount

Features: Anti-static conductive housing, module hot swap support, backplane data communication, rack status monitoring
