Product Details

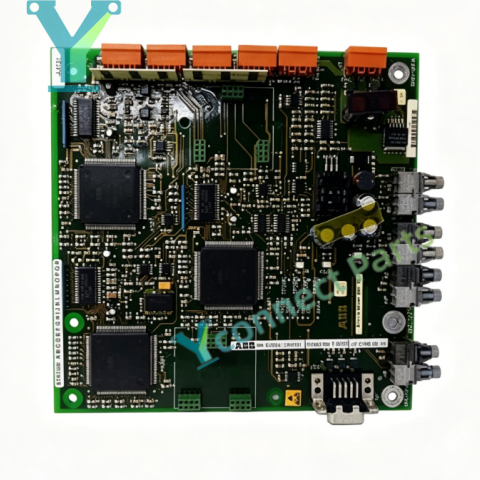

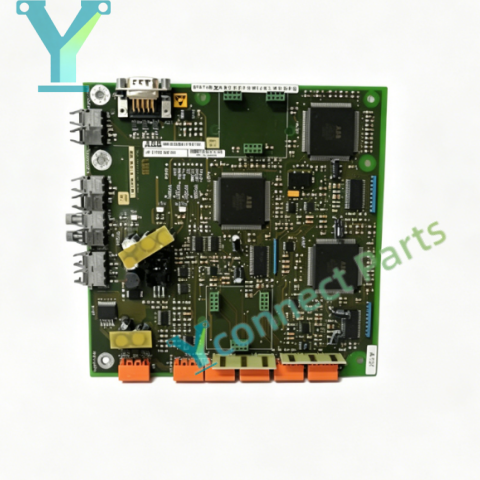

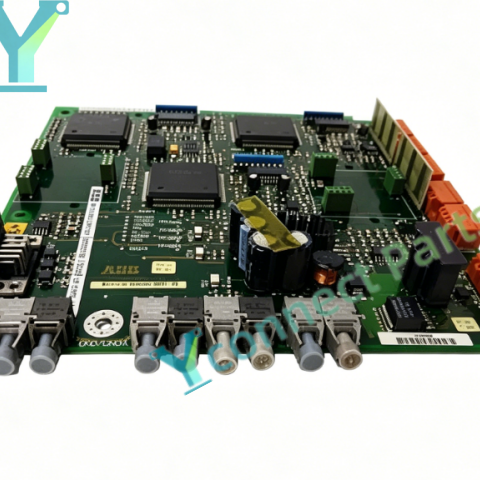

ABB UFC762AE101 3BHE006412R0101 is an I/O and communication extension board for ABB ACS800 series variable frequency drives and power control systems. The I/O and communication extension board expands the digital and analog input and output channels of the drive controller, and supports multiple fieldbus adapters to connect with PLC and upper automation systems. This ABB UFC762AE101 board supports ABB drive programming language DPL, which can run independent local control logic such as PID regulation and interlock control, reducing the burden on the main controller. The drive control interface board has built-in signal isolation circuit to suppress electromagnetic interference in workshop environments and protect internal drive circuits. It continuously monitors the wiring status of I/O terminals and internal hardware, and outputs fault alarm information for quick troubleshooting. It supports hot swapping for replacement without shutting down the whole system, effectively reducing production downtime. Widely applied in paper making, metal processing, chemical, power and material handling equipment, it is an important spare part for ACS800 drive system upgrade and maintenance. Rack plug-in design makes installation and replacement convenient and fast.

Parameters and Specifications

Brand: ABB

Model: UFC762AE101 3BHE006412R0101

Product Type: I/O and Communication Extension Board

Compatible Drive: ABB ACS800 series VFD

Programming: Support ABB DPL drive programming language

Function: I/O expansion, fieldbus communication access, local logic control

Isolation: Galvanic signal isolation

Power Supply: 24V DC

Operating Temperature: -20°C ~ +70°C

Protection Class: IP20

Condition: New or tested used spare parts
