Product Details

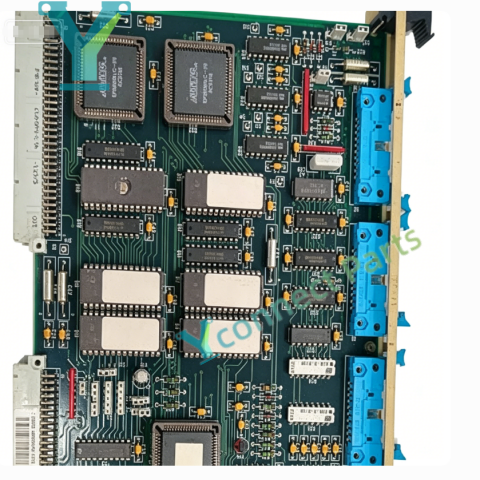

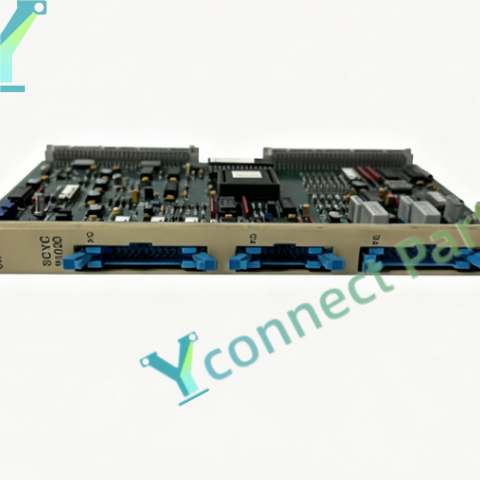

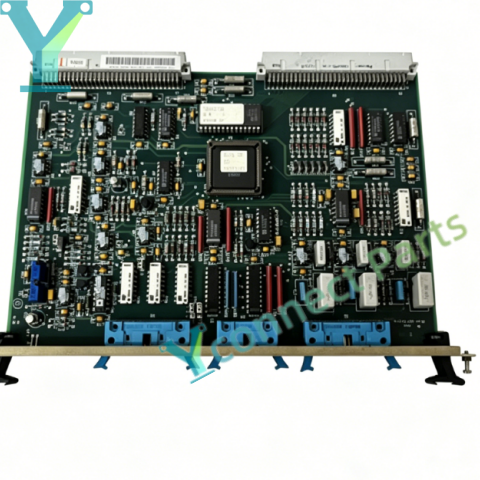

ABB SCYC51010 is a pulse encoder board applied for ABB large drive and converter control systems. The pulse encoder board collects pulse signals from rotary encoders and feeds back motor speed and position information to the drive controller for closed-loop motion control. This ABB SCYC51010 board supports high-frequency pulse signal reception, achieving high-precision motor speed and position detection. The drive control board adopts signal filtering and isolation design to suppress electromagnetic interference from power circuits and guarantee accurate signal transmission. It supports multiple encoder types and has built-in signal fault diagnosis function to detect broken wires or signal loss quickly. Widely used in metallurgy, paper making, mining and heavy industry transmission equipment, it serves as an important spare part for ABB converter maintenance. It adopts rack plug-in structure for convenient on-site installation, replacement and maintenance.

Parameters and Specifications

Brand: ABB

Model: SCYC51010

Product Type: Pulse Encoder Board

Power Supply: 24V DC

Input Signal: Encoder pulse signal

Operating Temperature: -20°C ~ +60°C

Application: ABB industrial converter, high precision motor closed-loop control

Condition: New or tested used spare parts
