Product Details:

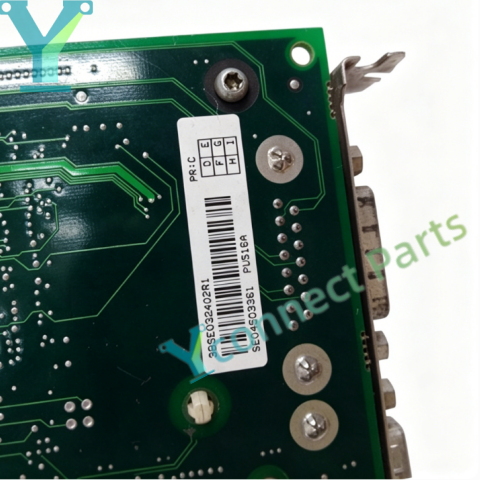

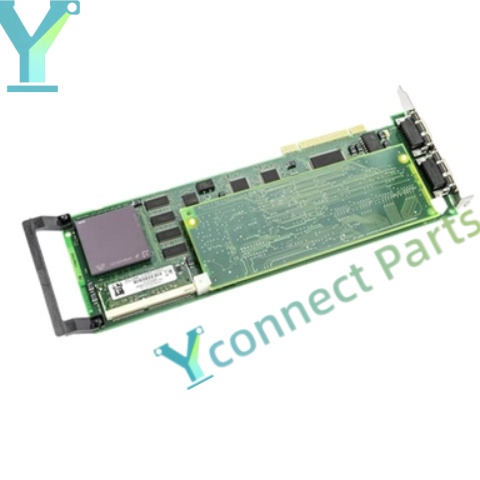

The ABB PU516 3BSE013064R1 engineering interface module is a PCI bus engineering card developed for ABB Advant OCS and Advant Master DCS system. This engineering interface module is equipped with 16MB onboard memory, integrated MB300 bus and RS232 serial ports. It is installed on the engineering workstation with PCI slot, used for system configuration, online programming, real-time monitoring and hardware fault diagnosis of Advant OCS controllers. It realizes stable data interaction between workstation and DCS control rack, supports downloading control programs and uploading process data. The module has built-in circuit monitoring function and anti-electromagnetic interference design to ensure reliable communication in heavy industrial environments. As essential industrial spare parts, it can replace faulty engineering interface module to restore system programming and online debugging function of Advant OCS DCS and minimize maintenance downtime.

Product Application:

This Advant OCS DCS module is widely used in power industry,metallurgy,oil and gas,pulp and paper,water treatment and process automation projects. It serves as the dedicated engineering access card of Advant control platform,realizing controller configuration,program download and on-site system debugging for industrial automation control systems.

Parameters and Specifications:

Brand: ABB

Model: PU516 3BSE013064R1

Product Type: Engineering Interface PCI Module

Series: Advant OCS / Advant Master DCS

Memory:16MB

Communication Interface:MB300 bus, RS232, 32-bit 33MHz PCI bus

Power Supply:5V PCI power supply

Feature: System configuration, online programming, fault diagnosis

Protection Class:IP20

Mounting:PCI slot installation in workstation

Operating Temperature:0℃~+60℃

Storage Temperature:-40℃~+85℃

Weight:0.38kg

Dimension:324mm ×126mm ×18mm

Certification:CE,RoHS

Our ABB PU516 3BSE013064R1 engineering interface module is fully inspected and tested before shipment. We supply reliable industrial spare parts with fast global delivery and professional technical support. Please send your inquiry if you need this Advant OCS DCS module.
