Product Details:

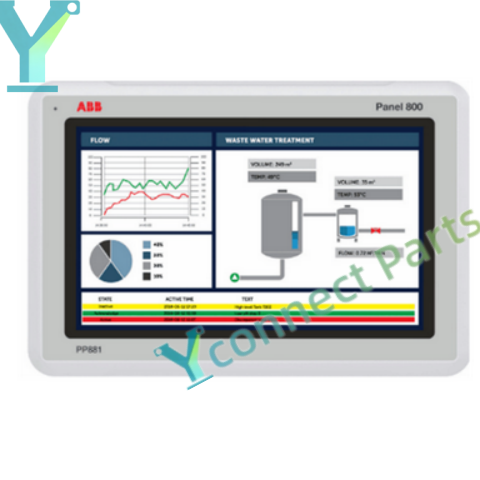

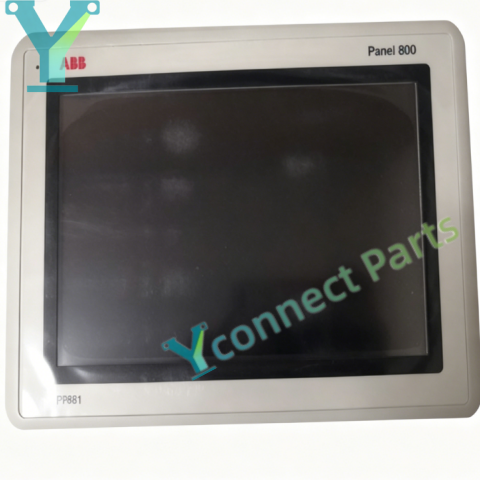

The ABB PP881 3BSE092978R1 operator panel is a 10.1 inch widescreen resistive touch HMI unit from ABB Panel 800 series, compatible with AC800M and System 800xA distributed control system. This operator panel adopts ARM9 1GHz processor, equipped with 1GB RAM and 2GB SSD storage, supporting real-time process data display, alarm event management, parameter adjustment and operation data logging. It comes with dual Ethernet ports, RS232, RS422/485 and dual USB 2.0 interfaces for flexible connection with ABB controllers and peripheral devices. The die-cast aluminum front panel meets IP65 protection standard against dust and water splash, suitable for harsh industrial workshop environment. As essential industrial spare parts, it can replace faulty operator panel to restore human-machine interaction function of the control system and minimize production downtime.

Product Application:

This Panel 800 HMI is widely used in power industry,metallurgy,oil and gas,pulp and paper,water treatment and large-scale manufacturing process automation. It serves as the human-machine interface of AC800M control platform,realizing real-time process monitoring,closed-loop regulation and fault alarm display for on-site industrial equipment.

Parameters and Specifications:

Brand: ABB

Model: PP881 3BSE092978R1

Product Type: Operator Panel / HMI

Series: Panel 800

Display:10.1 inch TFT color touchscreen,1024×600 widescreen,500 cd/m²

Processor:ARM9,1GHz

Memory:1GB RAM,2GB SSD

Power Supply:24V DC,18~32V DC working range

Power Consumption:21.6W

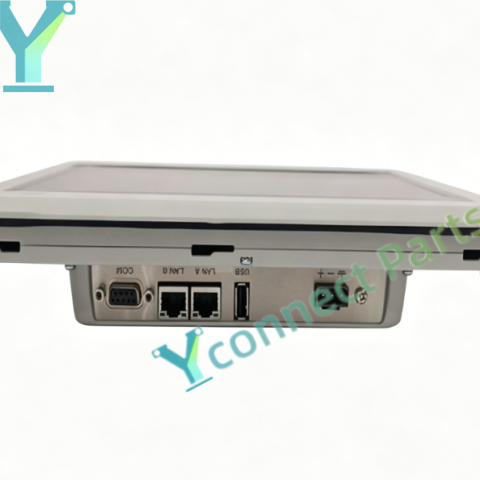

Communication Interface:Dual Ethernet,RS232,RS422/485,Dual USB2.0

Touch Type:Resistive touch

Protection Class:IP65 front, IP20 rear

Mounting:Panel cutout mounting

Operating Temperature:-10℃~+60℃

Storage Temperature:-40℃~+85℃

Weight:1.8kg

Dimension:292mm ×194mm ×52mm

Certification:CE,RoHS

Our ABB PP881 3BSE092978R1 operator panel is fully inspected and tested before shipment. We supply reliable industrial spare parts with fast global delivery and professional technical support. Please send your inquiry if you need this Panel 800 HMI.
