Product Details:

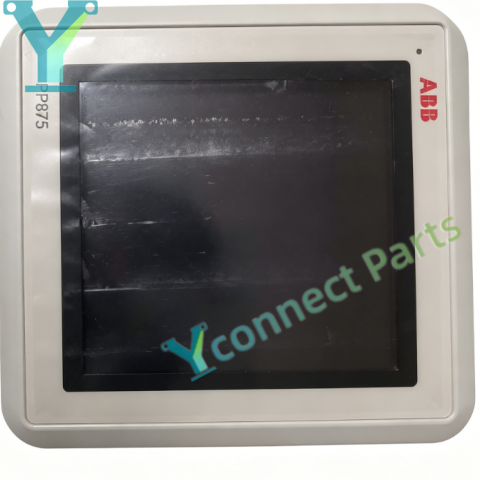

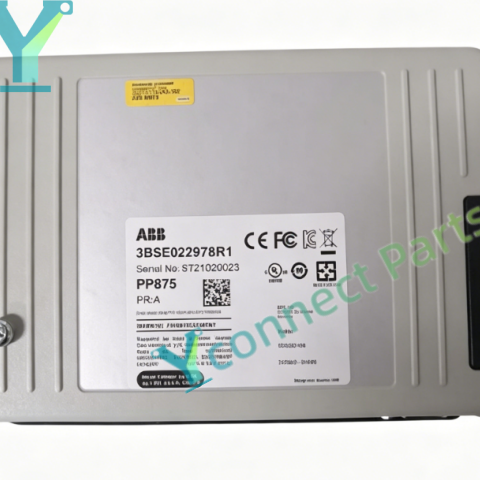

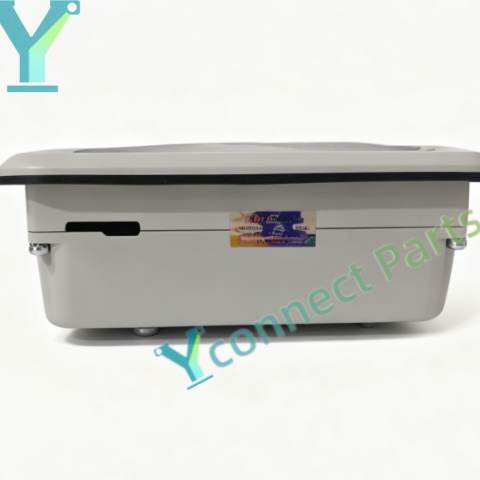

The ABB PP875 3BSE092977R1 operator panel is a 7 inch widescreen resistive touchscreen HMI unit of ABB Panel 800 series, compatible with AC800M and System 800xA distributed control system. This operator panel adopts 1GHz ARM9 processor, equipped with 512MB main memory and 2GB SSD storage for HMI application and data storage. It supports real-time process data display, alarm event management, parameter configuration and operation data logging. It is equipped with 10/100 Ethernet, RS232, RS422/485 and USB 2.0 interfaces for flexible connection with ABB controllers and peripheral devices. The front panel adopts die-cast aluminum design with IP65 protection grade, which can resist dust and water splash and adapt to harsh industrial workshop environment. As essential industrial spare parts, it can replace faulty operator panel to restore human-machine interaction function of the control system and minimize production downtime.

Product Application:

This Panel 800 HMI is widely used in power industry,metallurgy,oil and gas,pulp and paper,water treatment and manufacturing process automation. It serves as the human-machine interface of AC800M control platform,realizing real-time process monitoring,parameter adjustment and fault alarm display for on-site industrial equipment.

Parameters and Specifications:

Brand: ABB

Model: PP875 3BSE092977R1

Product Type: Operator Panel / HMI

Series: Panel 800

Display:7 inch TFT color touchscreen,800×480 widescreen

Processor:ARM9,1GHz

Memory:512MB RAM,2GB SSD

Power Supply:24V DC,18~32V DC working range

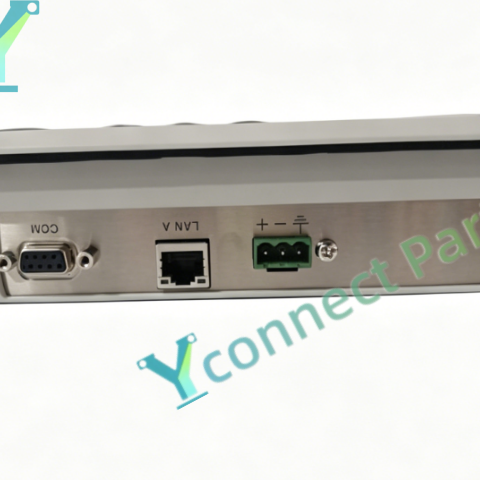

Communication Interface:1×Ethernet, RS232, RS422/485, USB2.0

Touch Type:Resistive touch

Protection Class:IP65 front, IP20 rear

Mounting:Panel cutout mounting

Operating Temperature:-10℃~+60℃

Storage Temperature:-40℃~+85℃

Weight:0.8kg

Dimension:204mm ×143mm ×50mm

Certification:CE,RoHS

Our ABB PP875 3BSE092977R1 operator panel is fully inspected and tested before shipment. We supply reliable industrial spare parts with fast global delivery and professional technical support. Please send your inquiry if you need this Panel 800 HMI.
