Product Details:

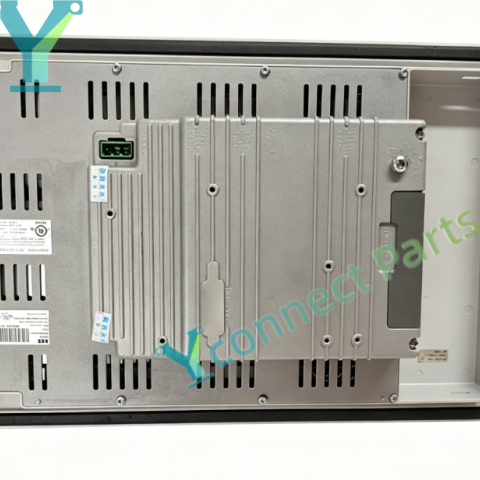

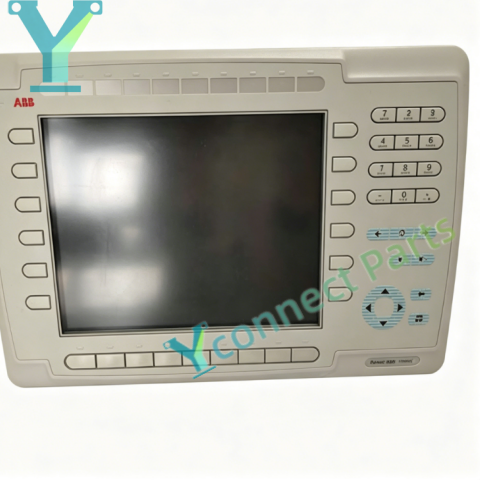

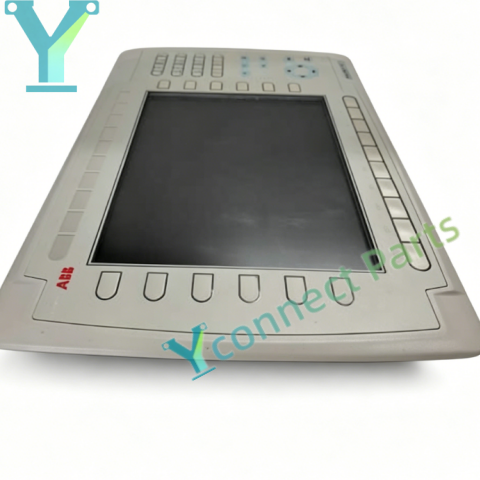

The ABB PP846A 3BSE042238R2 operator panel is a 10.4 inch color touchscreen HMI unit from ABB Panel 800 series, compatible with AC800M automation control system. This operator panel adopts TFT-LCD display with 800×600 SVGA resolution, supports real-time process data display, alarm notification, parameter setting and recipe management. It is equipped with Ethernet and serial communication interfaces for stable connection with PLC and controller modules. The robust enclosure design can resist dust and vibration in harsh industrial environments. As essential industrial spare parts, it can replace faulty operator panel to restore human-machine interaction function of the control system and minimize production downtime.

Product Application:

This Panel 800 HMI is widely used in power industry,metallurgy,oil and gas,pulp and paper,water treatment and manufacturing process automation. It serves as the human-machine interface of AC800M control platform,realizing real-time process monitoring,parameter adjustment and fault alarm display for on-site industrial equipment.

Parameters and Specifications:

Brand: ABB

Model: PP846A 3BSE042238R2

Product Type: Operator Panel / HMI

Series: Panel 800

Display:10.4 inch TFT color touchscreen,800×600 SVGA

Power Supply:24V DC,18-32V DC working range

Power Consumption:24W

Communication Interface:Ethernet, serial interface

Mounting:Panel cutout mounting

Protection Class:IP65 on front panel

Operating Temperature:0℃~+60℃

Storage Temperature:-40℃~+85℃

Weight:2.0kg

Dimension:280mm ×228mm ×71mm

Certification:CE,RoHS

Our ABB PP846A 3BSE042238R2 operator panel is fully inspected and tested before shipment. We supply reliable industrial spare parts with fast global delivery and professional technical support. Please send your inquiry if you need this Panel 800 HMI.
