Product Details:

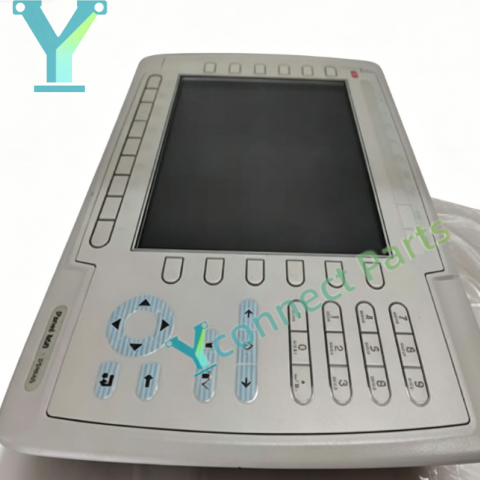

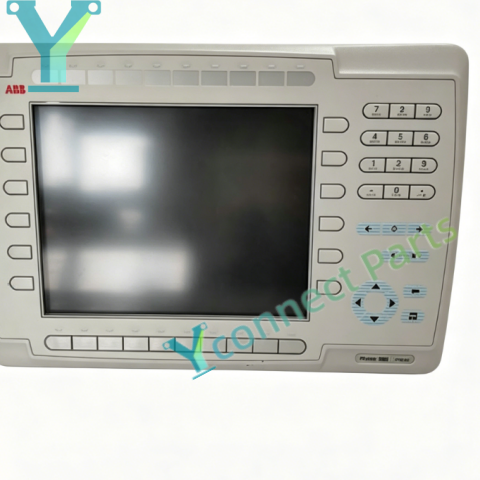

The ABB PP846 3BSE042238R1 operator panel is a 10.4 inch TFT color touchscreen HMI unit of ABB Panel 800 series, compatible with AC800M and System 800xA distributed control system. This operator panel adopts 800×600 SVGA resolution display, equipped with physical shortcut function keys, supporting real-time process data display, alarm message management, parameter configuration and operation data recording. It integrates Ethernet, RS232 and RS485 communication interfaces to realize stable data connection with ABB controllers and peripheral equipment. The front panel has IP65 protection rating, which can prevent dust and splash water interference and adapt to harsh industrial workshop environment. As essential industrial spare parts, it can replace faulty operator panel to restore human-machine interaction function of the control system and minimize production downtime.

Product Application:

This Panel 800 HMI is widely used in power industry,metallurgy,oil and gas,pulp and paper,water treatment and manufacturing process automation. It serves as the human-machine interface of AC800M control platform,realizing real-time process monitoring,parameter adjustment and fault alarm display for on-site industrial equipment.

Parameters and Specifications:

Brand: ABB

Model: PP846 3BSE042238R1

Product Type: Operator Panel / HMI

Series: Panel 800

Display:10.4 inch TFT color touchscreen,800×600 SVGA

Power Supply:24V DC

Communication Interface:Ethernet, RS232, RS485

Feature: With physical function keys

Protection Class:IP65 front, IP20 rear

Mounting:Panel cutout mounting

Operating Temperature:0℃~+60℃

Storage Temperature:-40℃~+85℃

Weight:2.0kg

Dimension:280mm ×228mm ×71mm

Certification:CE,RoHS

Our ABB PP846 3BSE042238R1 operator panel is fully inspected and tested before shipment. We supply reliable industrial spare parts with fast global delivery and professional technical support. Please send your inquiry if you need this Panel 800 HMI.
