Product Details:

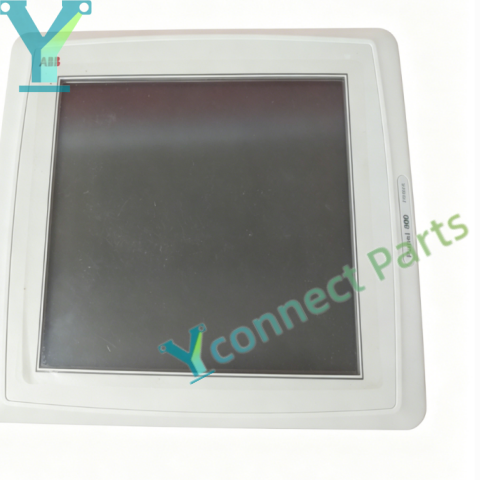

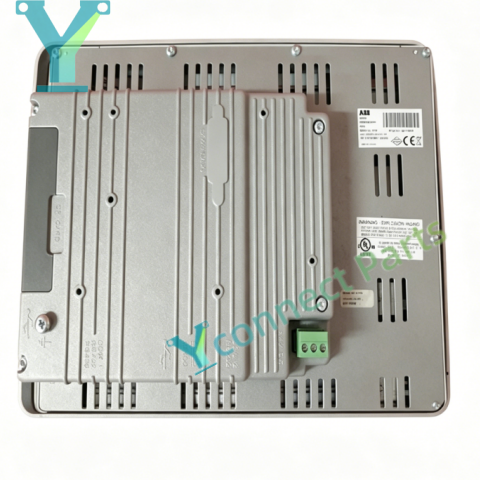

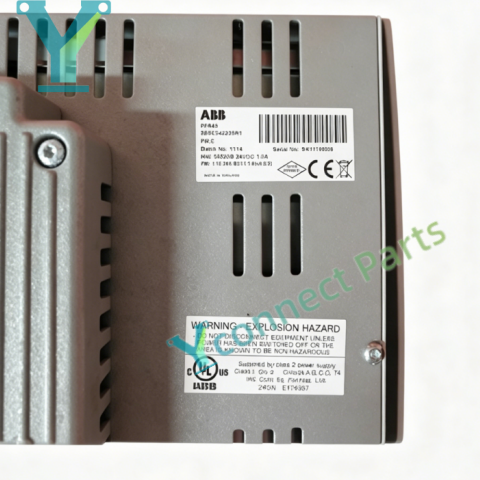

The ABB PP845 3BSE042235R1 operator panel is a 10.4 inch color touchscreen HMI unit of ABB Panel 800 series, compatible with AC800M automation control system. This operator panel adopts TFT-LCD display with 800×600 SVGA resolution, supports real-time process data display, alarm message pop-up, parameter modification and data logging. It is equipped with Ethernet and serial communication interfaces to realize stable data connection with ABB controllers. The front panel has IP65 protection rating to resist dust and water splash in harsh industrial environment. As essential industrial spare parts, it can replace faulty operator panel to restore human-machine interaction function of the control system and minimize production downtime.

Product Application:

This Panel 800 HMI is widely used in power industry,metallurgy,oil and gas,pulp and paper,water treatment and manufacturing process automation. It serves as the human-machine interface of AC800M control platform,realizing real-time process monitoring,parameter adjustment and fault alarm display for on-site industrial equipment.

Parameters and Specifications:

Brand: ABB

Model: PP845 3BSE042235R1

Product Type: Operator Panel / HMI

Series: Panel 800

Display:10.4 inch TFT color touchscreen,800×600 SVGA

Power Supply:24V DC

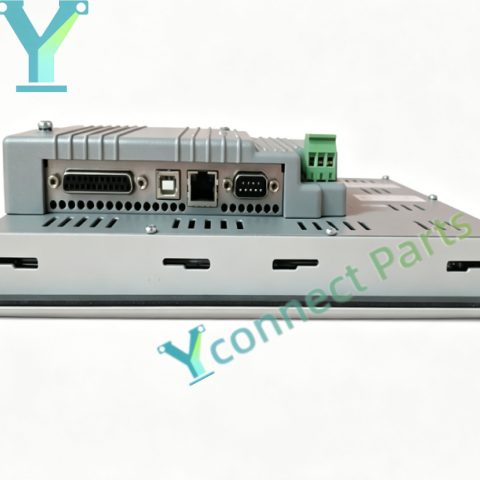

Communication Interface:Ethernet, RS232/485

Protection Class:IP65 front, IP20 rear

Mounting:Panel cutout mounting

Operating Temperature:0℃~+60℃

Storage Temperature:-40℃~+85℃

Weight:2.0kg

Dimension:280mm ×228mm ×71mm

Certification:CE,RoHS

Our ABB PP845 3BSE042235R1 operator panel is fully inspected and tested before shipment. We supply reliable industrial spare parts with fast global delivery and professional technical support. Please send your inquiry if you need this Panel 800 HMI.
