Product Details:

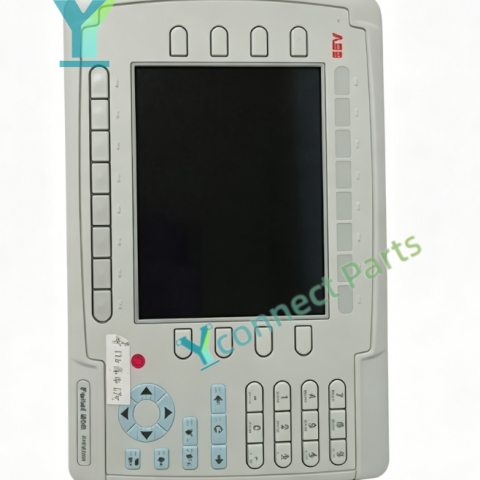

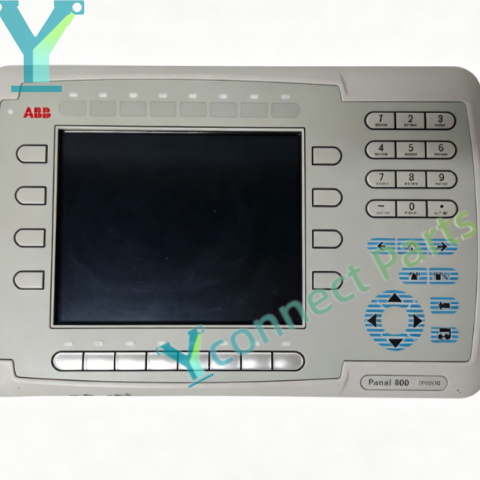

The ABB PP836A 3BSE042237R2 operator panel is a 6.5 inch TFT color HMI unit with integrated physical function keys from ABB Panel 800 series, compatible with AC800M and System 800xA distributed control system. This operator panel supports touch operation and physical key input with 640×480 display resolution. It can display real-time process data, manage alarm messages, set control parameters and record operation data. Equipped with Ethernet, RS232, RS485 and USB communication interfaces, it can connect to ABB controllers steadily. The front panel meets IP65 protection standard to resist dust and water splash for harsh industrial environments. As essential industrial spare parts, it can replace faulty operator panel to restore human-machine interaction function of the control system and minimize production downtime.

Product Application:

This Panel 800 HMI is widely used in power industry,metallurgy,oil and gas,pulp and paper,water treatment and manufacturing process automation. It serves as the human-machine interface of AC800M control platform,realizing real-time process monitoring,logic control and fault alarm display for on-site industrial equipment.

Parameters and Specifications:

Brand: ABB

Model: PP836A 3BSE042237R2

Product Type: Operator Panel / HMI

Series: Panel 800

Display:6.5 inch TFT color screen,640×480

Power Supply:24V DC

Memory:64MB RAM,8MB Flash

Communication Interface:Ethernet, RS232, RS485, USB

Feature: Built-in physical function keys

Protection Class:IP65 front, IP20 rear

Mounting:Panel cutout mounting

Operating Temperature:0℃~+60℃

Storage Temperature:-40℃~+85℃

Weight:1.15kg

Dimension:220mm ×150mm ×70mm

Certification:CE,RoHS

Our ABB PP836A 3BSE042237R2 operator panel is fully inspected and tested before shipment. We supply reliable industrial spare parts with fast global delivery and professional technical support. Please send your inquiry if you need this Panel 800 HMI.
