Product Details:

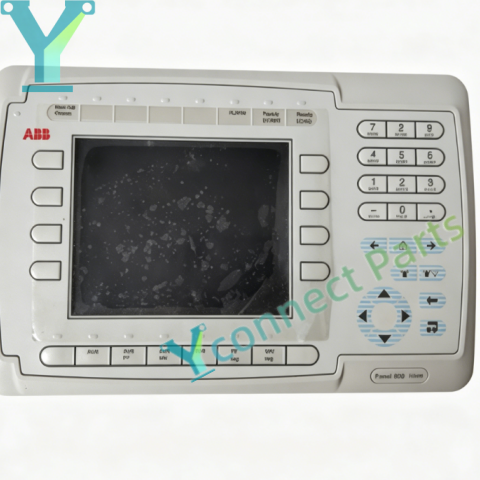

The ABB PP826 3BSE042244R1 operator panel is a compact 7 inch TFT color touchscreen HMI unit from ABB Panel 800 series, compatible with AC800M and System 800xA distributed control system. This operator panel adopts 800×480 resolution display, supports real-time process data visualization, fault alarm display, parameter modification and operation data storage. It is equipped with Ethernet, RS232 and RS485 communication interfaces to realize stable data connection with ABB PLC and controller modules. The front panel adopts die-cast aluminum design and reaches IP65 protection grade, effectively resisting dust and liquid splashing in harsh industrial workshop environment. As essential industrial spare parts, it can replace faulty operator panel to restore human-machine interaction function of the control system and minimize production downtime.

Product Application:

This Panel 800 HMI is widely used in power industry,metallurgy,oil and gas,pulp and paper,water treatment and manufacturing process automation. It serves as the human-machine interface of AC800M control platform,realizing real-time process monitoring,parameter adjustment and fault alarm display for on-site industrial equipment.

Parameters and Specifications:

Brand: ABB

Model: PP826 3BSE042244R1

Product Type: Operator Panel / HMI

Series: Panel 800

Display:7 inch TFT color touchscreen,800×480

Power Supply:24V DC

Power Consumption:＜20W

Communication Interface:Ethernet, RS232, RS485

Protection Class:IP65 front, IP20 rear

Mounting:Panel cutout mounting

Operating Temperature:-20℃~+60℃

Storage Temperature:-40℃~+85℃

Weight:0.8kg

Dimension:226mm ×144mm ×58mm

Certification:CE,RoHS

Our ABB PP826 3BSE042244R1 operator panel is fully inspected and tested before shipment. We supply reliable industrial spare parts with fast global delivery and professional technical support. Please send your inquiry if you need this Panel 800 HMI.
