Product Details

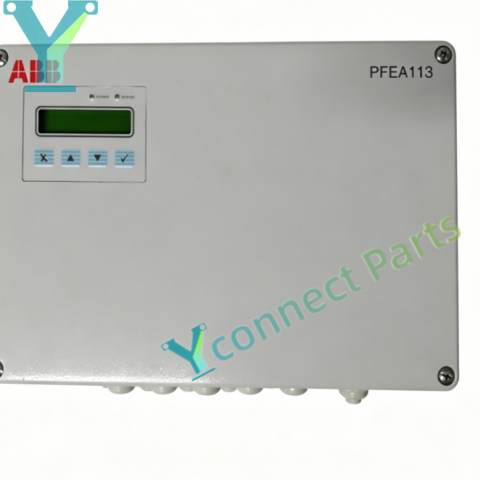

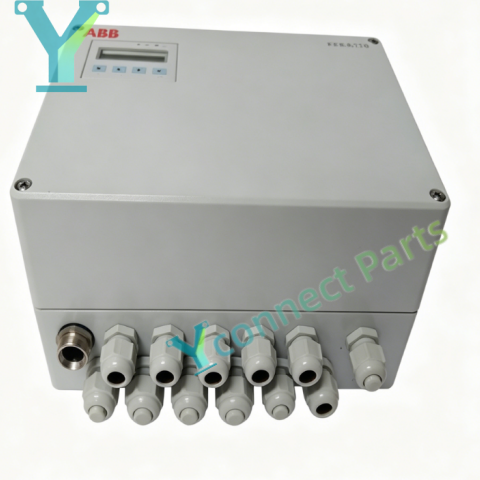

ABB PFEA113-65 3BSE028144R0065 is an IP65 rated tension electronics control unit for ABB Pressductor load cell web tension measurement system. The tension electronics control unit collects force signals from up to 4 tension load cells, calculates real-time web tension value and outputs analog and digital signals to PLC and drive controller for closed-loop tension control. This ABB PFEA113-65 unit is equipped with 2×16 character multi-language LCD display and operation keys, supporting on-site parameter setting, tension value viewing and status check. The web tension controller supports PROFIBUS-DP communication, 6 configurable analog outputs and 4 digital outputs to meet complex tension control demands. It has built-in self-diagnostic function, continuously monitoring load cell connection, signal status and internal circuit, and generating fault alarm information for maintenance. The IP65 enclosure can resist dust and water splash, suitable for harsh workshop environment. Widely applied in paper making, plastic film, textile, metal foil, printing and slitting production lines, it ensures stable web tension, reduces material breakage and improves finished product quality. It supports wall mounting for easy installation and replacement.

Parameters and Specifications

Brand: ABB

Model: PFEA113-65 3BSE028144R0065

Product Type: Tension Electronics Control Unit

Protection Class: IP65

Power Supply: 24V DC (18~36V DC)

Power Consumption: 12W

Load Cell Support: Max 4 Pressductor load cells

Communication: PROFIBUS-DP

Output: 6 analog outputs,4 digital outputs

Display: 2×16 character multi-language LCD

Operating Temperature: +5°C ~ +55°C

Application: Paper, film, textile, metal foil web tension control

Condition: New or tested used spare parts
