Product Details

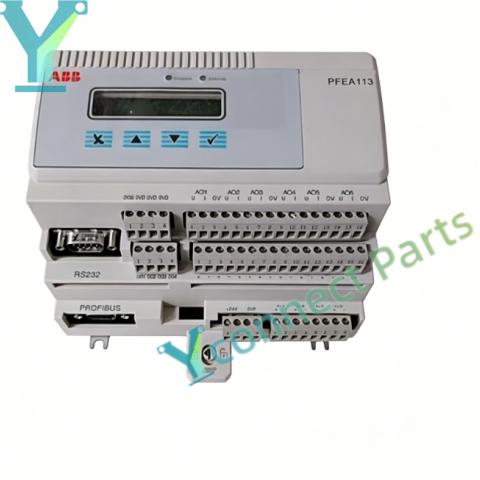

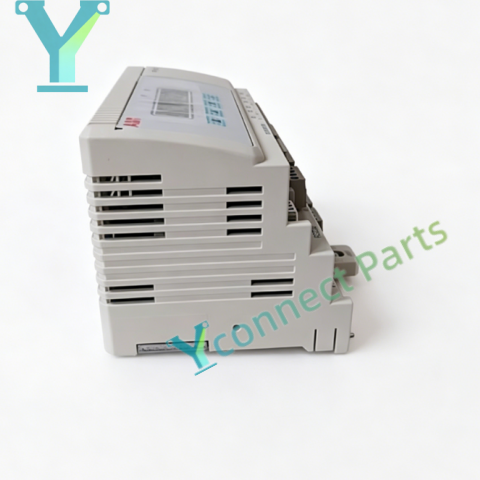

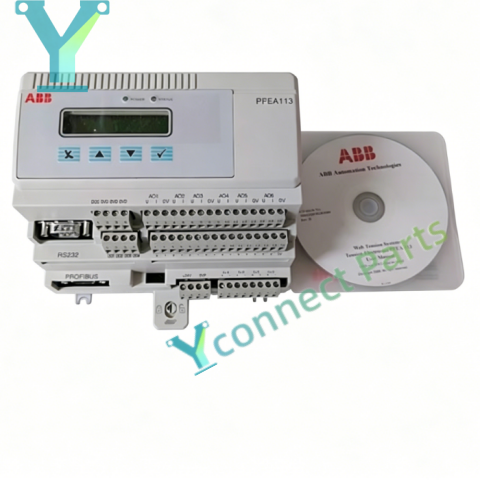

ABB PFEA113-20 3BSE028144R0020 is a DIN rail mounted tension electronics control unit used for ABB Pressductor load cell web tension measurement system. The tension electronics control unit receives force signals from up to 4 tension load cells, calculates real-time web tension value and transmits analog and digital control signals to PLC and drive controller for closed-loop tension regulation. This ABB PFEA113-20 unit comes with a 2×16 character backlit multi-language LCD display and operation keys, supporting local parameter configuration, tension value reading and fault status checking. The web tension controller supports PROFIBUS-DP fieldbus communication, and provides multiple configurable analog and digital output channels to match diverse production line control demands. It has built-in self-diagnostic function, continuously detecting load cell connection status and internal circuit, and outputting fault alarm messages once abnormal conditions occur. With IP20 protection grade, it is designed for installation inside electrical cabinets. Widely applied in paper making, plastic film, textile, metal foil, printing and slitting production lines, it stabilizes web tension and reduces material breakage during operation. DIN rail mounting structure enables convenient installation, maintenance and quick spare parts replacement.

Parameters and Specifications

Brand: ABB

Model: PFEA113-20 3BSE028144R0020

Product Type: Tension Electronics Control Unit

Protection Class: IP20

Power Supply: 24V DC (18~36V DC)

Power Consumption: Approx 8W

Load Cell Support: Max 4 Pressductor load cells

Communication: PROFIBUS-DP

Display: 2×16 character backlit multi-language LCD

Installation: DIN rail mount

Operating Temperature: -20°C ~ +60°C

Application: Paper, film, textile, metal foil web tension control

Condition: New or tested used spare parts
