Product Details

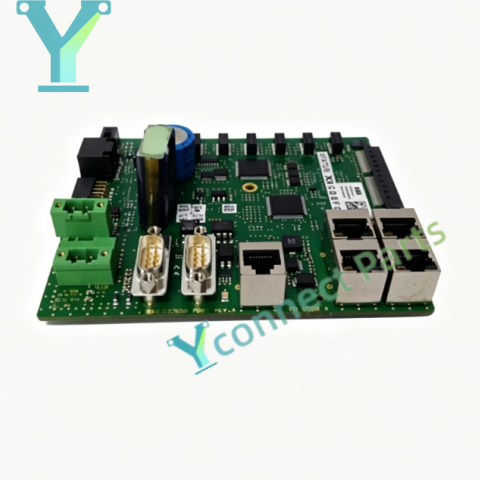

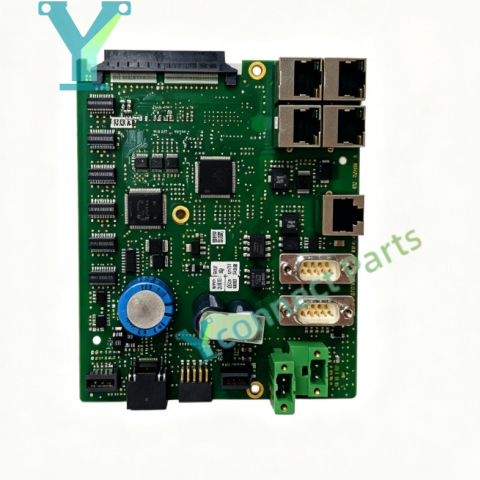

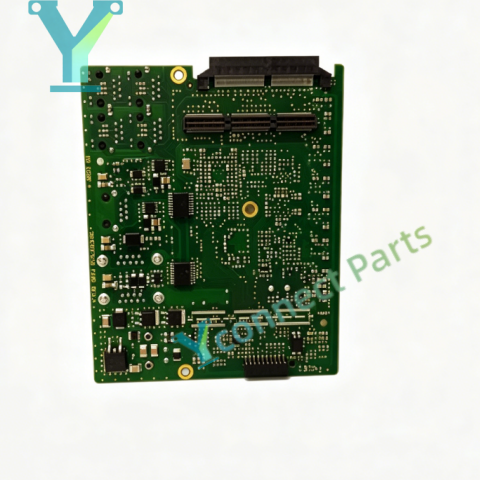

ABB PDD500A101 3BHE037649R0101 is a high performance drive processor module designed for ABB AC800PEC power electronic control platform and large variable frequency drive systems. The high performance drive processor module executes high-speed closed-loop control algorithms for drive systems, collects real-time current and voltage feedback signals, and outputs high-precision control commands to power switching units. This ABB PDD500A101 module supports high-speed fiber communication interface to realize fast data interaction between the main controller and power units. The AC800PEC power control board adopts galvanic isolation design to resist strong electromagnetic interference in heavy industrial environments. It has built-in comprehensive self-diagnostic function, which can monitor internal hardware status and signal faults in real time and trigger alarm signals for rapid troubleshooting. Conformal coating circuit design protects the board against moisture, dust and vibration. Widely applied in metallurgy, mining, chemical, power and pulp & paper industries for high-power variable frequency drive and power quality control equipment. Rack plug-in structure enables convenient installation and quick field replacement.

Parameters and Specifications

Brand: ABB

Model: PDD500A101 3BHE037649R0101

Product Type: High Performance Drive Processor Module

Compatible System: ABB AC800PEC power control platform

Function: High-speed drive closed-loop control, signal acquisition, fiber communication

Isolation: Galvanic signal isolation

Power Supply: 24V DC

Operating Temperature: -20°C ~ +60°C

Protection Class: IP20

Condition: New or tested used spare parts
