Product Details

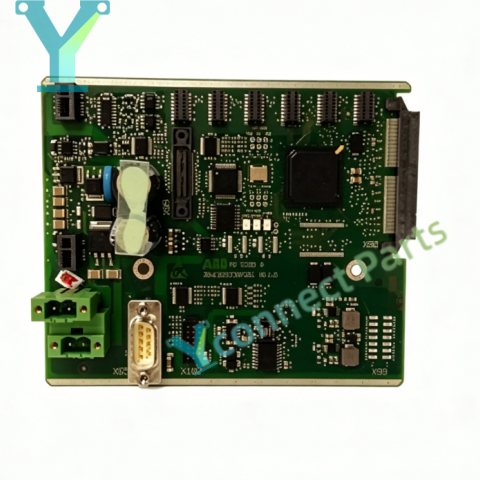

ABB PDD205A1121 3BHE025335R1121 is a pulse distributor drive module designed for ABB AC800PEC power electronic control platform and UNITROL generator excitation systems. The pulse distributor drive module receives low-voltage control pulses from the main controller, converts and distributes high-precision firing pulses to power semiconductor devices, and completes high-isolation transmission of drive signals. This ABB PDD205A1121 gate drive board adopts high-grade galvanic isolation design, which can effectively suppress strong electromagnetic interference inside power plant excitation cabinets and high-power converter equipment. It has built-in self-diagnostic function to monitor pulse output status, signal loss and circuit faults in real time, and feed fault alarm signals back to the master controller for protection action. Conformal coated PCB structure improves resistance to moisture, dust and vibration, adapting to harsh industrial working environments. Widely used in large generator UNITROL excitation control cabinets, high-power variable frequency drives and power quality control systems, it is critical spare part for power electronic system maintenance and renovation. Rack plug-in structure enables convenient installation and quick field replacement.

Parameters and Specifications

Brand: ABB

Model: PDD205A1121 3BHE025335R1121

Product Type: Pulse Distributor Drive Module

Compatible System: ABB AC800PEC, UNITROL excitation system

Function: Firing pulse conversion, distribution and isolation transmission

Isolation: High galvanic signal isolation

Diagnostic: Pulse signal monitoring, fault alarm output

Power Supply: 24V DC

Operating Temperature: -20°C ~ +70°C

Protection Class: IP20

Condition: New or tested used spare parts
