Product Details

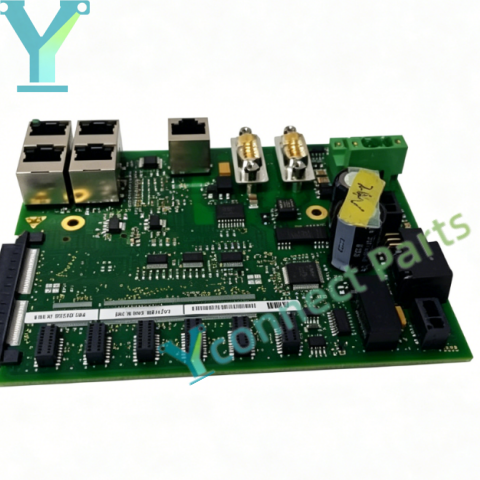

ABB PDD200A101 3BHE019633R0101 is a gate driver power module for ABB AC800PEC power electronic control platform, UNITROL excitation systems and ACS6000 medium voltage drives. The gate driver power module supplies multiple stable regulated DC voltages for gate drive circuits and signal processing boards inside high-power converter units. This ABB PDD200A101 board adopts reinforced galvanic isolation design to separate low-voltage control circuits from high-power main circuits, blocking surge and electromagnetic interference in power plant and heavy industry environments. The AC800PEC power supply board integrates overvoltage, overcurrent and short-circuit protection functions to prevent damage to other control hardware under abnormal load conditions. It has built-in self-diagnostic function to monitor output voltage status in real time and send fault alarm signals once power deviation occurs. Conformal coated PCB resists moisture, dust and vibration, ensuring long-term stable operation. Widely applied in generator excitation control cabinets, medium voltage frequency converters and power quality control equipment, it is critical spare part for power electronic system maintenance and renovation. Rack plug-in structure enables convenient installation and quick field replacement.

Parameters and Specifications

Brand: ABB

Model: PDD200A101 3BHE019633R0101

Product Type: Gate Driver Power Module

Compatible System: ABB AC800PEC, UNITROL excitation system, ACS6000 medium voltage drive

Function: Multi-channel regulated DC power supply for gate drive units

Isolation: Reinforced galvanic signal isolation

Protection: Overvoltage, overcurrent, short circuit protection

Power Supply: 24V DC

Operating Temperature: -20°C ~ +70°C

Protection Class: IP20

Condition: New or tested used spare parts
