Product Details:

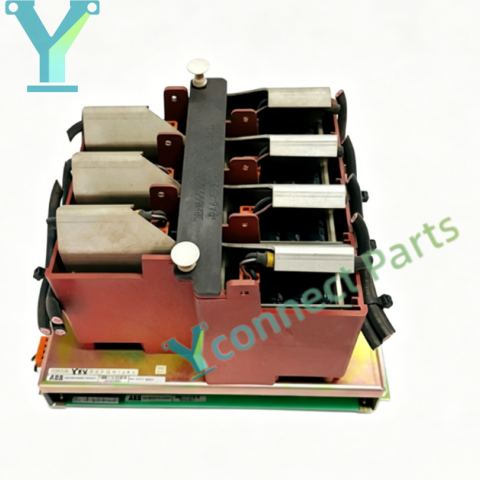

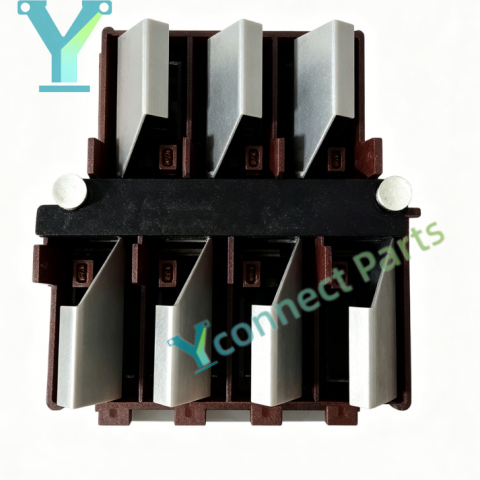

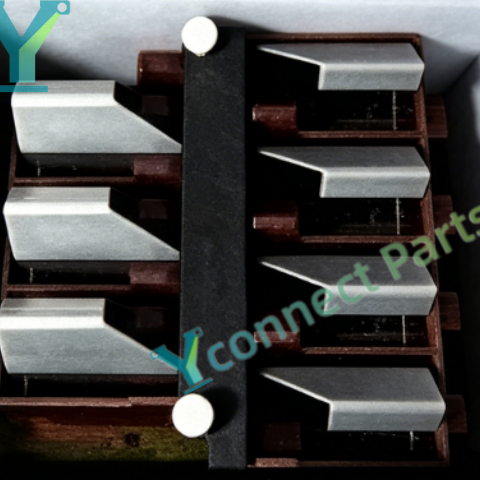

The ABB KUC711AE101 3BHB004661R0101 3BHB004791R0101 gate control unit is a high-speed trigger and signal processing board for ABB generator excitation control system. This gate control unit converts control signals into trigger pulses for power thyristor components, performs real-time signal sampling, pulse generation and circuit fault monitoring. It adopts optical fiber communication design to isolate strong electric interference and improve system stability in high voltage power environments. As essential industrial spare parts, it can replace faulty gate control unit to restore stable operation of generator excitation system and minimize power production downtime.

Product Application:

This excitation control module is widely used in thermal power plants,hydroelectric generators and large generator excitation regulation systems. It serves as the core pulse trigger unit of excitation platform,real-time receiving control commands from main controller,generating accurate trigger pulses for thyristor rectifier bridge and realizing closed-loop adjustment of generator excitation current.

Parameters and Specifications:

Brand: ABB

Model: KUC711AE101 3BHB004661R0101 3BHB004791R0101

Product Type: Gate Control Unit

Application: Generator Excitation System

Power Supply:24V DC

Communication Interface:Fiber optic, backplane bus

Function: Pulse generation, circuit fault monitoring

Protection Class:IP20

Mounting: Rack mount

Operating Temperature:0℃~+60℃

Storage Temperature:-40℃~+85℃

Weight:0.45kg

Dimension:165mm ×100mm ×30mm

Certification:CE,RoHS

Our ABB KUC711AE101 gate control unit is fully inspected and tested before shipment. We supply reliable industrial spare parts with fast global delivery and professional technical support. Please send your inquiry if you need this excitation control module.
