Product Details:

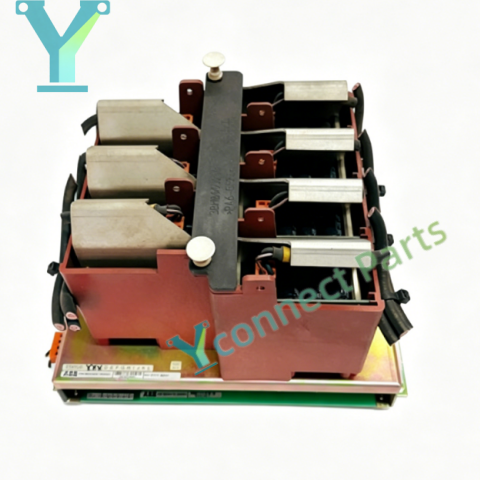

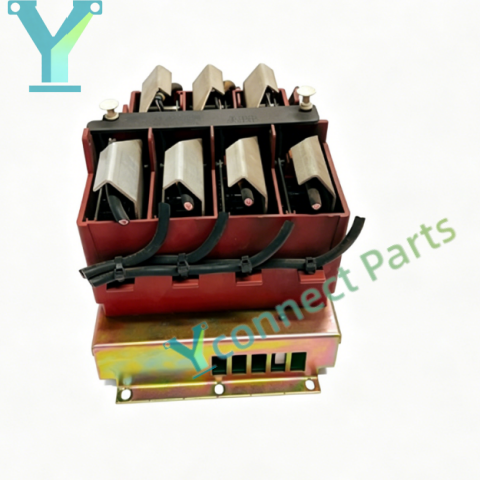

The ABB KUC711AE 3BHB004661R0101 gate unit power supply module is a dedicated power supply board for ABB generator excitation and ACS1000 medium voltage drive system. This gate unit power supply module provides stable isolated power for IGCT gate drive circuits, equipped with overvoltage, overload and short circuit protection functions. It converts input voltage into reliable power to ensure accurate trigger signal output of power semiconductor devices. As essential industrial spare parts, it can replace faulty gate unit power supply module to restore stable operation of excitation or medium voltage drive system and minimize production downtime.

Product Application:

This excitation control module is widely used in thermal power generators,hydroelectric units and ABB ACS1000 medium voltage variable frequency drive systems. It serves as the power conversion unit of gate drive platform,supplying isolated power for high-speed trigger boards and power electronic control equipment.

Parameters and Specifications:

Brand: ABB

Model: KUC711AE 3BHB004661R0101

Product Type: Gate Unit Power Supply Module

Application: Generator Excitation System, ACS1000 Medium Voltage Drive

Power Supply Input:110~220V DC

Output: Isolated DC power for IGCT gate unit

Protection: Overload, short circuit, overvoltage

Protection Class:IP20

Mounting: Rack mount

Operating Temperature:0℃~+60℃

Storage Temperature:-40℃~+85℃

Weight:0.46kg

Dimension:165mm ×100mm ×30mm

Certification:CE,RoHS

Our ABB KUC711AE 3BHB004661R0101 gate unit power supply module is fully inspected and tested before shipment. We supply reliable industrial spare parts with fast global delivery and professional technical support. Please send your inquiry if you need this excitation control module.
