Product Details:

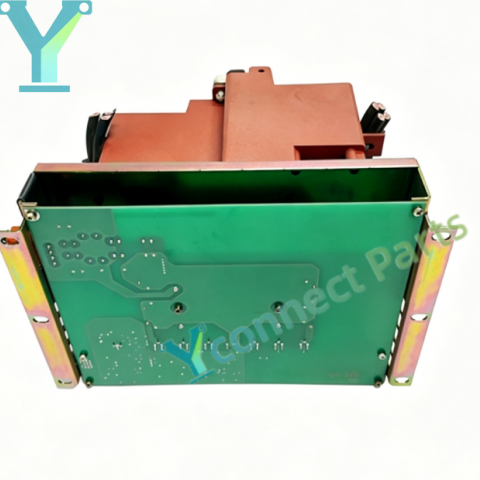

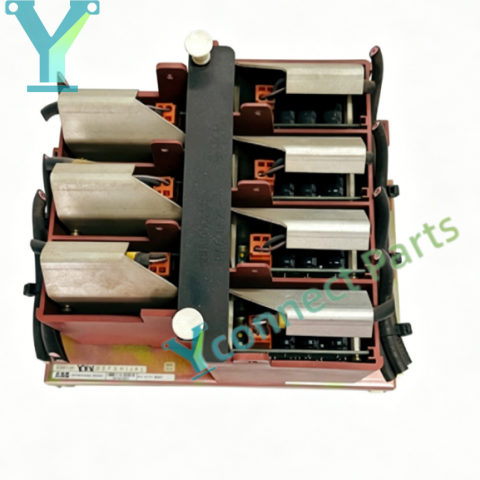

The ABB KUC711AE 3BHB004661R0001 gate control unit is a high-speed trigger and signal processing board designed for ABB generator excitation control system. This gate control unit converts digital control signals into trigger pulses for thyristor rectifier circuits, performs real-time signal sampling, circuit fault diagnosis and optical fiber data transmission. It adopts electromagnetic interference suppression design to operate reliably under high voltage power station environment. As essential industrial spare parts, it can replace faulty gate control unit to restore stable operation of generator excitation system and minimize power production downtime.

Product Application:

This excitation control module is widely used in thermal power generators,hydroelectric units and power plant excitation regulation systems. It works as the core pulse trigger and signal processing unit of the excitation rack,receiving commands from main controller board and adjusting excitation current to stabilize generator output voltage.

Parameters and Specifications:

Brand: ABB

Model: KUC711AE 3BHB004661R0001

Product Type: Gate Control Unit

Application: Generator Excitation System

Power Supply:24V DC

Communication Interface:Fiber optic, backplane bus

Protection Class:IP20

Mounting: Rack mount

Operating Temperature:0℃~+60℃

Storage Temperature:-40℃~+85℃

Weight:0.44kg

Dimension:165mm ×100mm ×30mm

Certification:CE,RoHS

Our ABB KUC711AE 3BHB004661R0001 gate control unit is fully inspected and tested before shipment. We supply reliable industrial spare parts with fast global delivery and professional technical support. Please send your inquiry if you need this excitation control module.
