Product Details:

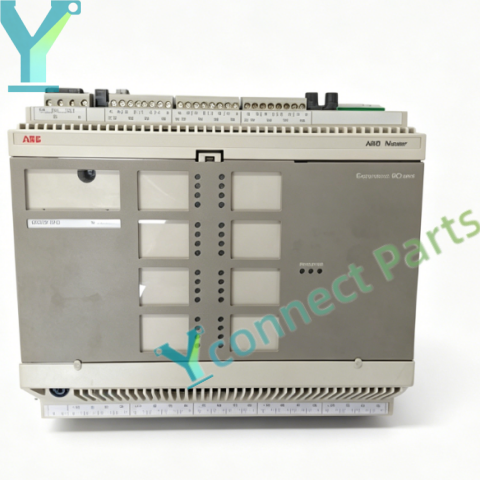

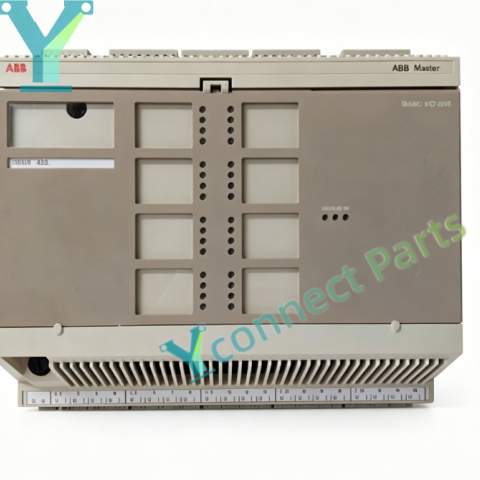

The ABB DSDX452 5716075-P digital input output module is a basic remote I/O unit of ABB S400 series, compatible with Advant Master DCS and System 800xA control system. This digital input output module has 24V DC 20 digital input channels and 12 relay digital output channels, supporting collection of field binary switch signals and relay output control commands. It communicates with the main process station through MasterFieldbus SDB backplane bus, with built-in self-test function, power loss monitoring and channel LED status indicators. The module can be expanded with DSDX451 or DSDI451 modules to expand I/O capacity. Its robust aluminum chassis can resist vibration and electromagnetic interference in harsh industrial sites. As essential industrial spare parts, it can replace faulty digital input output module to restore the signal interaction function of the DCS system and minimize production downtime.

Product Application:

This S400 I/O unit is widely used in power industry,metallurgy,oil and gas,pulp and paper,water treatment and process automation. It serves as the front digital signal interface of Advant Master DCS platform,realizing field switch signal collection,protection trip output and command transmission for on-site industrial control equipment.

Parameters and Specifications:

Brand: ABB

Model: DSDX452 5716075-P

Product Type: Digital Input Output Module / S400 I/O Unit

Series: S400 Remote I/O

Power Supply:24V DC

Digital Input:20 channels,24V DC

Digital Output:12 relay output channels

Communication Interface:MasterFieldbus SDB backplane bus

Feature: Built-in self-test, power monitoring, LED channel indicator

Expandable: Compatible with DSDX451, DSDI451

Protection Class:IP20

Mounting:Rack mounting

Operating Temperature:0℃~+60℃

Storage Temperature:-40℃~+85℃

Weight:2.9kg

Dimension:198mm ×90mm ×217.8mm

Certification:CE,RoHS

Our ABB DSDX452 5716075-P digital input output module is fully inspected and tested before shipment. We supply reliable industrial spare parts with fast global delivery and professional technical support. Please send your inquiry if you need this S400 I/O unit.
