Product Details:

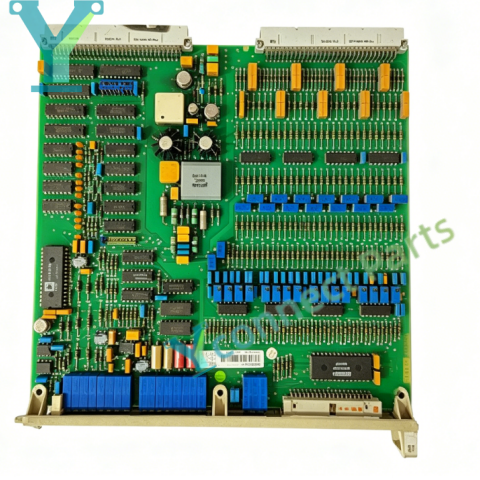

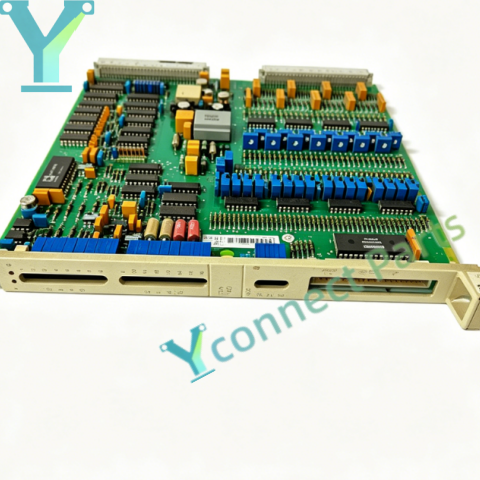

The ABB DSAI130D 3BSE003127R1 analog input module belongs to ABB Advant Master DCS and MasterPiece200 control system. This analog input module has 16 configurable analog input channels with 12-bit sign resolution, supporting multiple signal types including 4-20mA, 0-20mA, 0~10V and -10~+10V from field temperature, pressure and flow transmitters. It converts collected analog signals into digital data and transmits data to the main controller through rack backplane bus. It adopts group isolation design and built-in signal filtering function, equipped with channel fault diagnosis to detect signal overload and circuit anomalies in real time. The module can operate stably under strong electromagnetic interference industrial sites. As essential industrial spare parts, it can replace faulty analog input module to restore analog signal acquisition function of Advant Master DCS system and minimize production downtime.

Product Application:

This Advant Master DCS module is widely used in power industry,metallurgy,oil and gas,pulp and paper,water treatment and process automation projects. It serves as the front analog signal acquisition unit of Advant control platform,realizing continuous collection of process variables for on-site industrial measurement and closed-loop regulation.

Parameters and Specifications:

Brand: ABB

Model: DSAI130D 3BSE003127R1

Product Type: Analog Input Module

Series: Advant Master DCS, MasterPiece200

Channel:16 configurable analog input channels

Resolution:12-bit with sign

Signal Type:4-20mA,0-20mA,0~10V,-10~+10V DC

Power Supply:24V DC

Communication Interface:Rack backplane bus

Feature: Group isolation, signal filtering, channel fault diagnosis

Protection Class:IP20

Mounting:Rack mount

Operating Temperature:0℃~+60℃

Storage Temperature:-40℃~+85℃

Weight:0.52kg

Dimension:234mm ×165mm ×22mm

Certification:CE,RoHS

Our ABB DSAI130D 3BSE003127R1 analog input module is fully inspected and tested before shipment. We supply reliable industrial spare parts with fast global delivery and professional technical support. Please send your inquiry if you need this Advant Master DCS module.
