Product Details

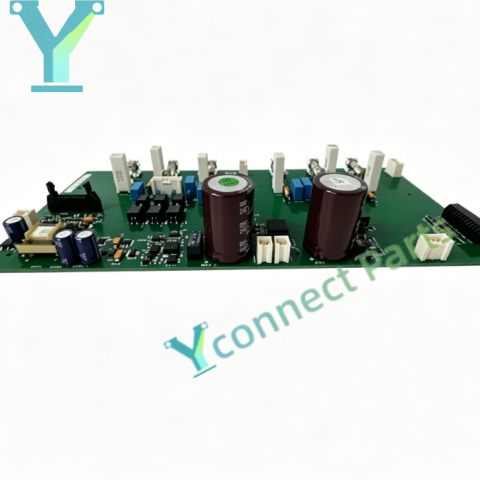

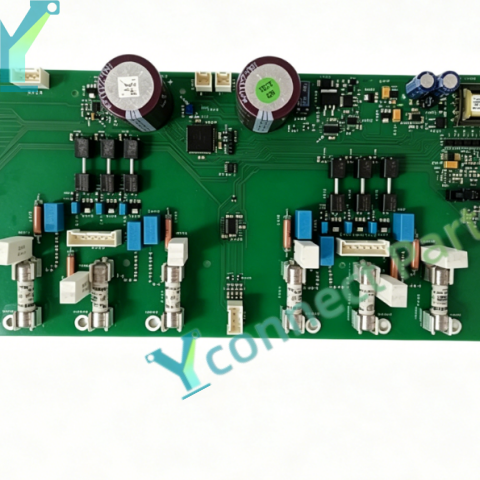

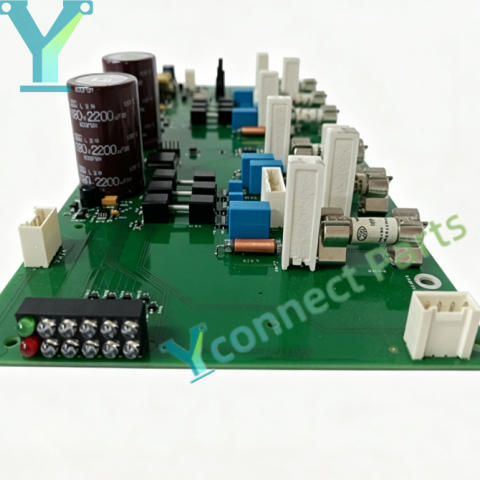

ABB DSAB-01C is a thyristor trigger board used for ABB industrial drive systems. This product can generate precise trigger pulses for thyristor components and realize phase angle control of power conversion. The thyristor trigger board adopts galvanic isolation design between control circuit and power circuit, which can effectively resist electromagnetic interference in industrial sites. It has built-in overvoltage and overcurrent fault detection functions to protect the whole drive system from damage. This ABB drive board can be matched with ACS series inverters, rectifiers and power conversion equipment, and is widely used in metallurgy, paper making, chemical industry and other industrial automation scenarios. The industrial control board features compact PCB structure, stable continuous operation and convenient maintenance and replacement.

Parameters and Specifications

Brand: ABB

Model: DSAB-01C

Product Type: Thyristor Trigger Board

Power Supply: 24V DC

Isolation Voltage: 1500 Vrms

Operating Temperature: -20°C ~ +70°C

Application: ABB ACS series drives, rectifier and inverter systems

Condition: New or tested used spare parts

Warranty: 12 months
