Product Details:

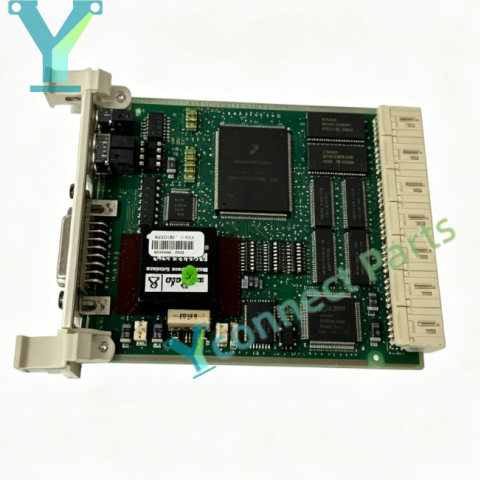

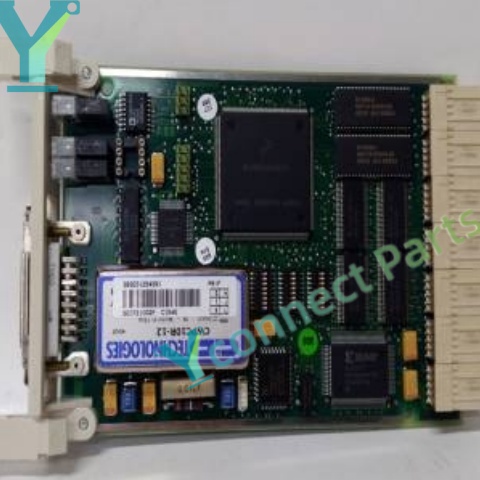

The ABB CI547 3BNP004429R0001 communication board is equipped with dedicated slave processor, developed for ABB MasterPiece200 and Advant OCS DCS system. This communication board undertakes all Masterbus 300 network communication tasks independently, offloading protocol processing and data transmission work from PM150 main CPU, which improves the real-time performance and stability of the whole control system. It realizes peer-to-peer data interaction between multiple controllers and field subsystems on Masterbus 300 network, and has built-in communication fault diagnosis and LED status indicators to quickly locate network anomalies. The module adopts anti-electromagnetic interference circuit design to operate reliably under complex industrial site environment. As essential industrial spare parts, it can replace faulty communication board to restore Masterbus 300 network communication function of DCS system and minimize production downtime.

Product Application:

This MasterPiece200 DCS module is widely used in power industry,metallurgy,oil and gas,pulp and paper,water treatment and process automation projects. It serves as the core network communication processing unit of Advant OCS control platform,realizing data exchange between PM150 controller and distributed control nodes for heavy-duty industrial equipment.

Parameters and Specifications:

Brand: ABB

Model: CI547 3BNP004429R0001

Product Type: Communication Board with Slave Processor

Series: MasterPiece200, Advant OCS

Compatible CPU: PM150

Communication Interface:Masterbus 300

Power Supply:24V DC

Feature: Onboard slave processor, communication task offloading, fault diagnosis, LED indicator

Protection Class:IP20

Mounting:Rack mount

Operating Temperature:0℃~+60℃

Storage Temperature:-40℃~+85℃

Weight:0.165kg

Dimension:257mm ×30mm ×125mm

Certification:CE,RoHS

Our ABB CI547 3BNP004429R0001 communication board is fully inspected and tested before shipment. We supply reliable industrial spare parts with fast global delivery and professional technical support. Please send your inquiry if you need this MasterPiece200 DCS module
