Product Details:

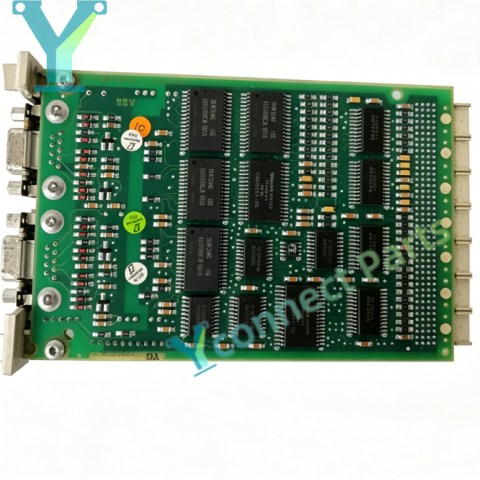

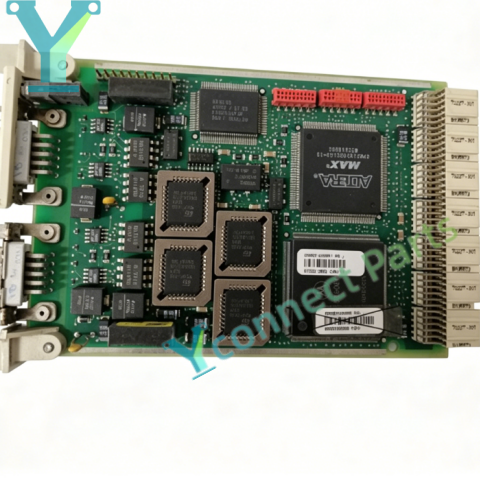

The ABB CI541V1 3BSE014666R1 Profibus DP interface module is a high-performance communication submodule for ABB AC800F Freelance DCS and Advant Controller 400 system. This Profibus DP interface module can be configured as master or slave station, supporting Profibus DP V0/V1 protocol with communication speed up to 12Mbps. It realizes cyclic data exchange between controller and field Profibus DP devices including drives, remote I/O modules and sensors. It adopts galvanic isolation design to avoid ground loop interference, equipped with LED status indicators and built-in communication fault diagnosis function to quickly locate network and hardware faults. The module is installed on SC510 or SC520 submodule carrier and communicates with main controller through backplane bus. As essential industrial spare parts, it can replace faulty Profibus DP interface module to restore fieldbus communication function of DCS system and minimize production downtime.

Product Application:

This AC800F Freelance DCS module is widely used in power industry,metallurgy,oil and gas,pulp and paper,water treatment and process automation projects. It serves as the Profibus fieldbus gateway of Freelance control platform,realizing high-speed data interaction between ABB controller and distributed Profibus DP field equipment.

Parameters and Specifications:

Brand: ABB

Model: CI541V1 3BSE014666R1

Product Type: Profibus DP Interface Submodule

Series: AC800F Freelance DCS, Advant Controller 400

Communication Protocol: Profibus DP V0, V1

Baud Rate: 9.6kbps ~ 12Mbps

Operation Mode: Configurable master / slave

Power Supply: Powered by submodule carrier backplane

Communication Interface: RS485 Profibus DP port

Feature: Galvanic isolation, LED indicator, built-in fault diagnosis

Compatible Carrier: SC510, SC520

Protection Class:IP20

Mounting: Installed on submodule carrier

Operating Temperature:-20℃~+60℃

Storage Temperature:-40℃~+85℃

Weight:0.20kg

Dimension:255mm ×125mm ×20mm

Certification:CE,RoHS

Our ABB CI541V1 3BSE014666R1 Profibus DP interface module is fully inspected and tested before shipment. We supply reliable industrial spare parts with fast global delivery and professional technical support. Please send your inquiry if you need this AC800F Freelance DCS module.
